Allavino 24" Wine Refrigerator 99-Bottle Dual Zone Tru-Vino YHWR99-2SR20

Allavino 24" Wine Refrigerator 99-Bottle Dual Zone Tru-Vino YHWR99-2SR20

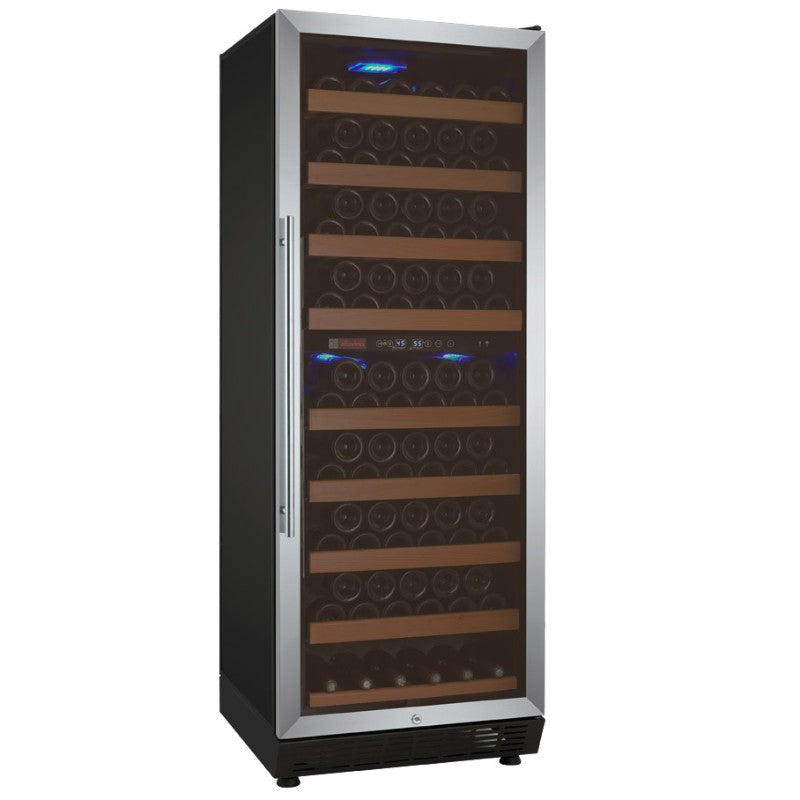

The Allavino Vite II YHWR99-2SR20 Wine Refrigerator with Tru-Vino Temperature Control Technology offers a sleek freestanding design with space for up to 99 bottles. Preserve your wine collection with Allavino’s advanced temperature control, easily adjustable via the intuitive digital control panel for consistent, reliable cooling.

Inside, durable hardwood shelves provide flexible storage to accommodate a variety of bottle sizes, while smooth gliding shelves allow effortless access without disturbing the maturation of your wines.

Hinge side: Right

Also available in a Black finish.

Wine Storage

Store your red and white wine collections safely and efficiently with precise temperature control.

• Dual temperature zones for simultaneous storage of red and white wine
• Upper Zone: 41–54°F
• Lower Zone: 54–73°F
• Maximum ambient temperature: 90°F
• Minimum ambient temperature: unit matches external temperature if ambient is cooler
• Temperature in zones must be set at least 10°F apart; normal internal variance ±5°F

Controls & Temperature Management

Digital controls provide precise, independent adjustments for each zone to preserve your wine’s quality.

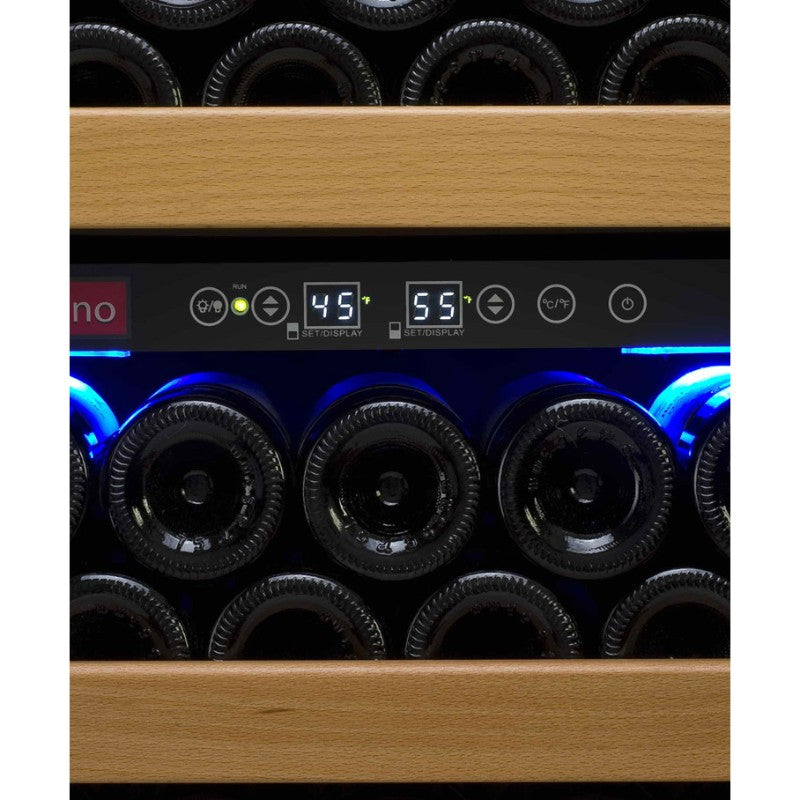

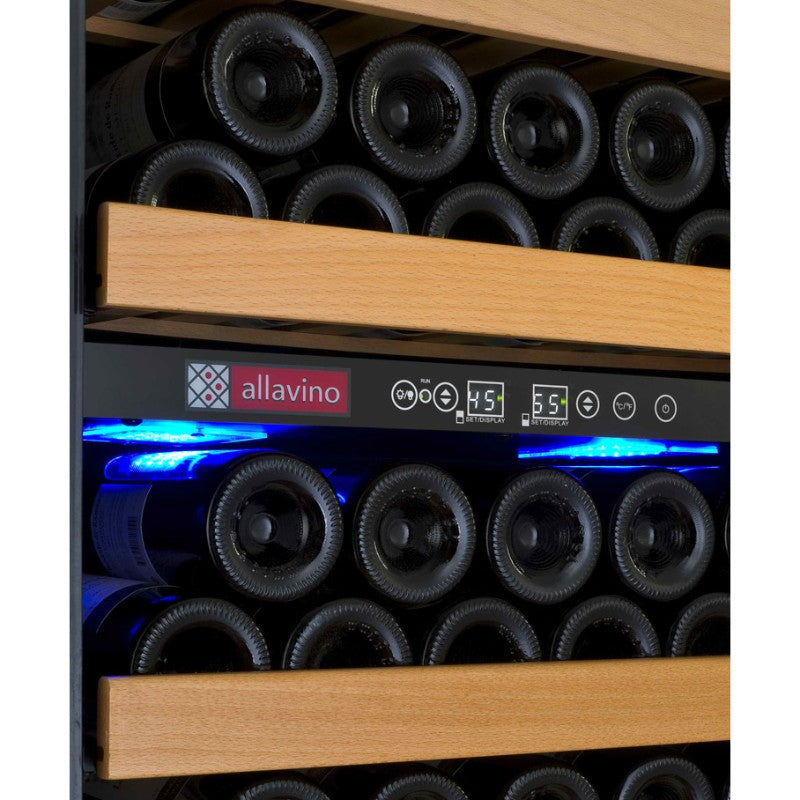

• Digital temperature display with push-button controls
• Easy-to-read display visible through glass door

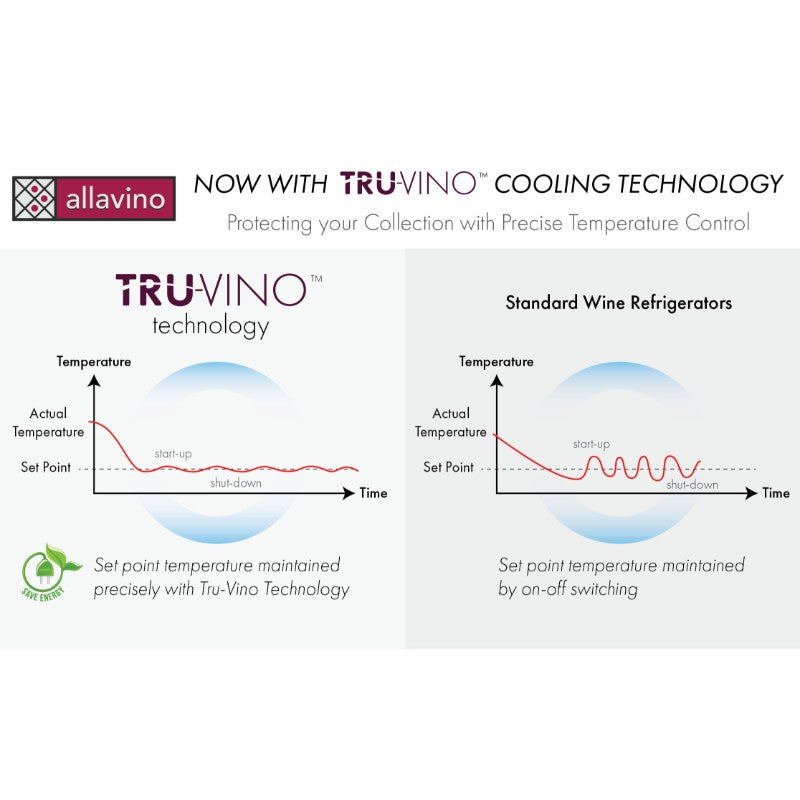

• Tru-Vino fan-forced cooling ensures even temperature distribution and faster cooldown

Shelving & Protection

Flexible and durable shelving safeguards your wine while providing easy access.

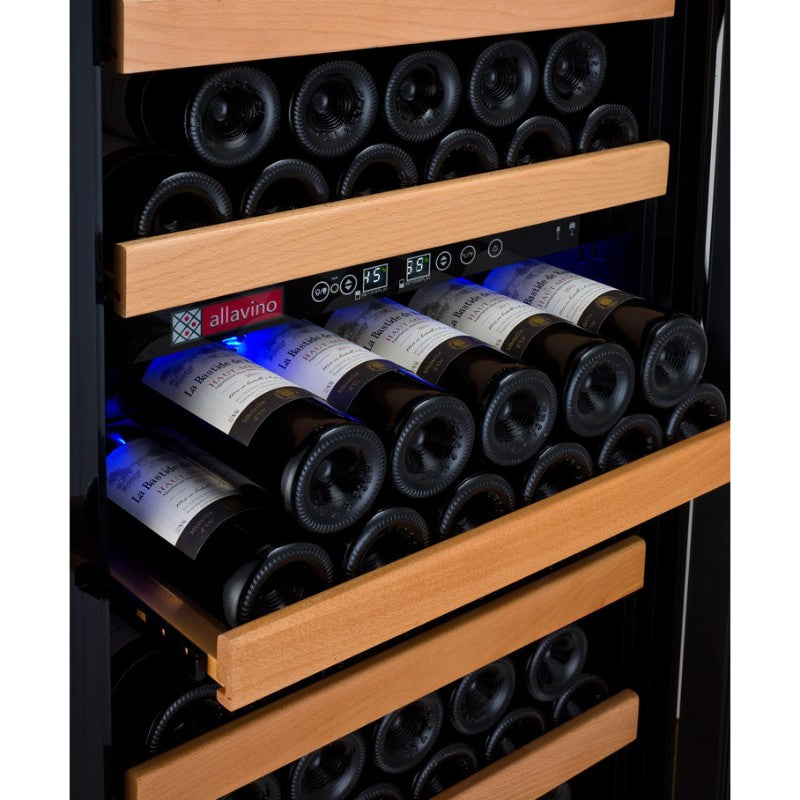

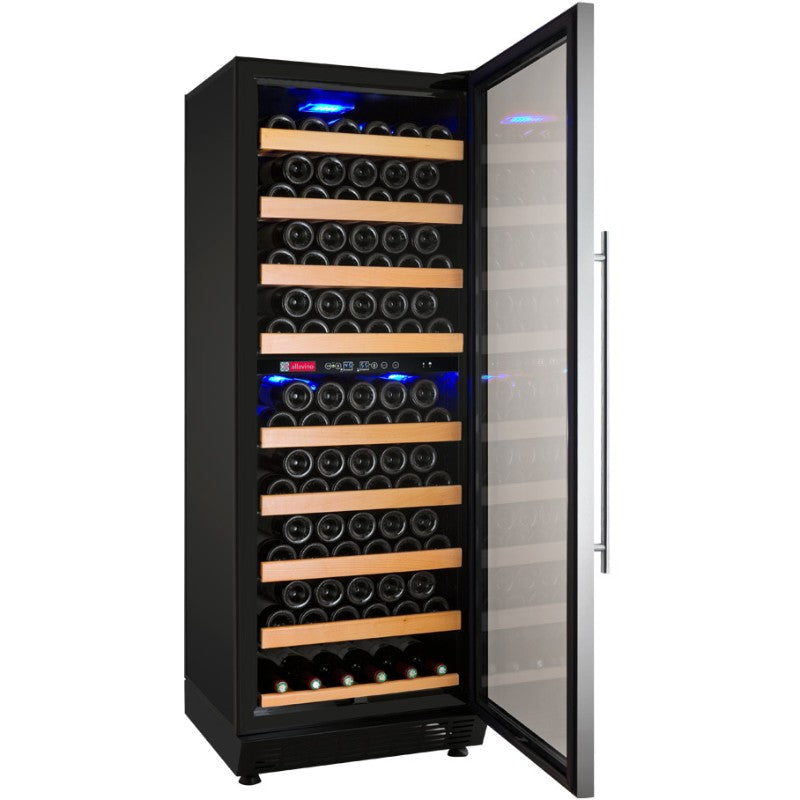

• 8 RackEasy rolling hardwood shelves glide smoothly on ball-bearing tracks
• Adjustable in 1-1/4" increments to accommodate varying bottle sizes
• Bottom shelf can be removed to increase storage capacity
• Extra-thick hardwood supports two rows of bottles
• Activated charcoal air filter prevents odors from penetrating corks

Design & Interior

Modern design with protective and stylish features to display your collection.

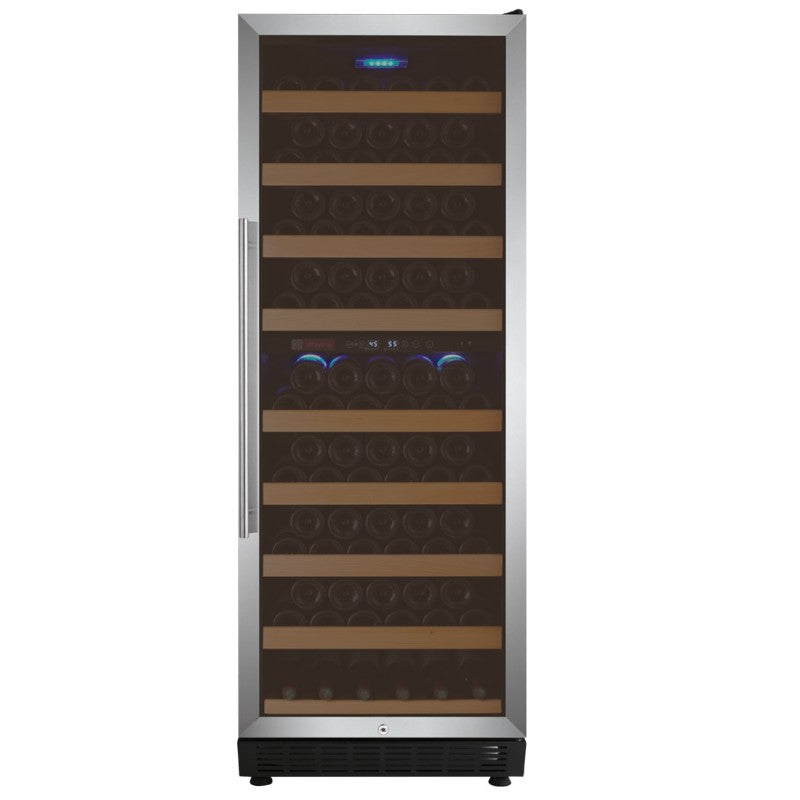

• Black cabinet with black framed glass door

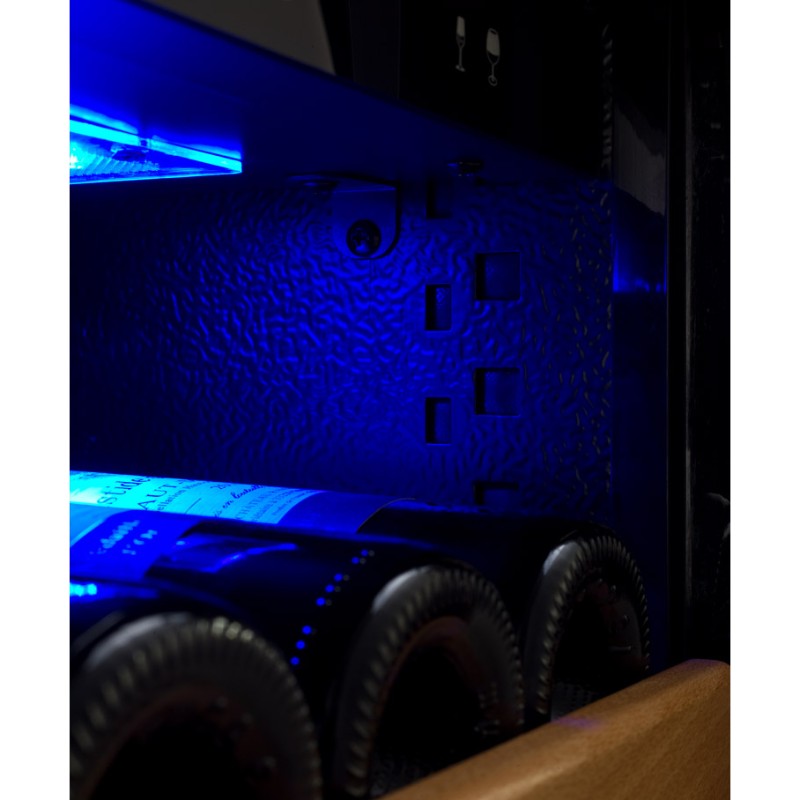

• LightCool Blue LED interior lighting showcases bottles without generating heat
• Magnetic door gasket ensures a tight seal
• Two light panels to illuminate bottles evenly

Door & Handles

Customizable door and handle options for convenience and aesthetics.

• UV-protected, argon-filled, double-pane glass door

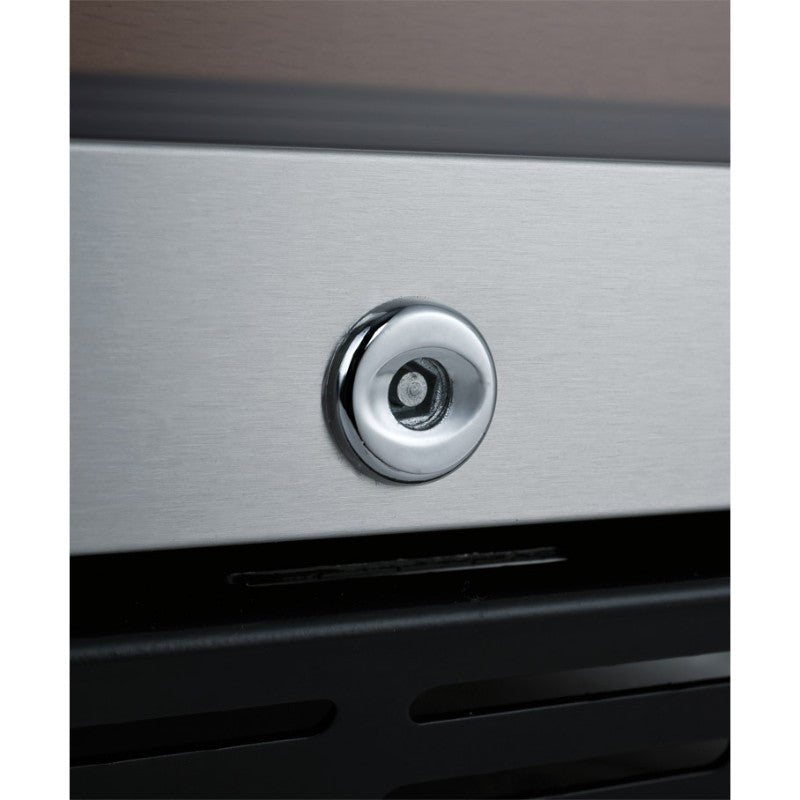

• Built-in key lock with 2 keys for security

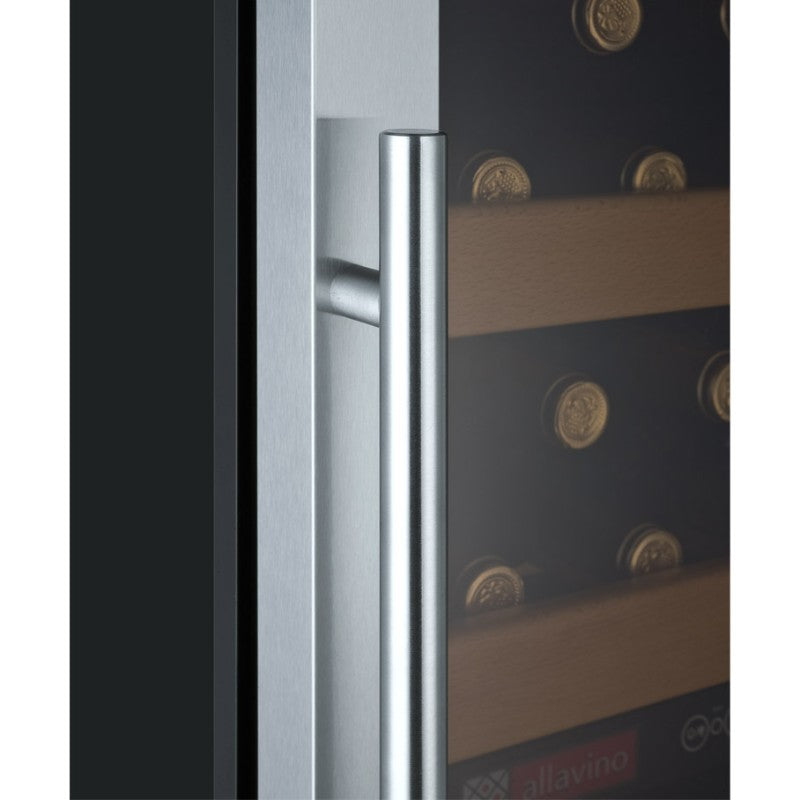

• Towel bar and curved handles included for user preference
• Hinge on right side; magnetic gasket ensures tight closure

Performance & Features

Advanced cooling and airflow technology maintain a stable environment for optimal wine storage.

• Fan-forced cooling reduces hot/cold spots and prevents frost buildup
• Quiet operation at 40 dB
• 175 W motor (0.95 KW.h/24hr)
• 4 adjustable leveling feet for stability

Dimensions & Weight

Compact design for freestanding or built-in installation with full storage capacity.

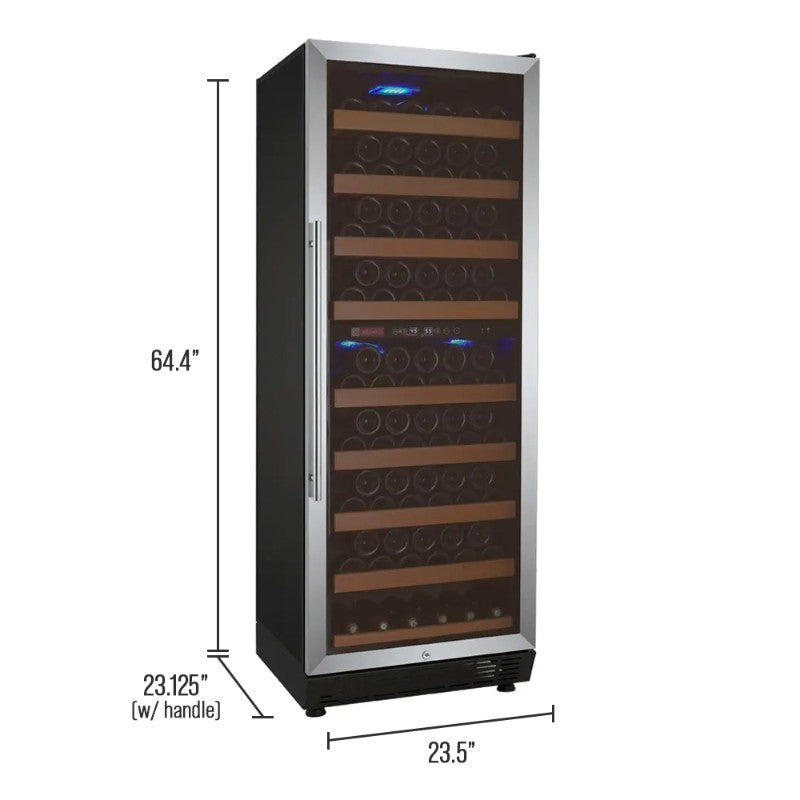

• Unit dimensions: 64 3/8" H x 23 1/2" W x 23 1/8" D (with handle)
• Packaging dimensions: 67 1/4" H x 26 1/8" W x 24 1/2" D
• Weight: 167 lbs.

Warranty

Reliable coverage to protect your investment.

• 1 year on parts & labor
• 5 years parts only on compressor and sealed system

Important Notes

Guidelines to maximize capacity and proper bottle storage.

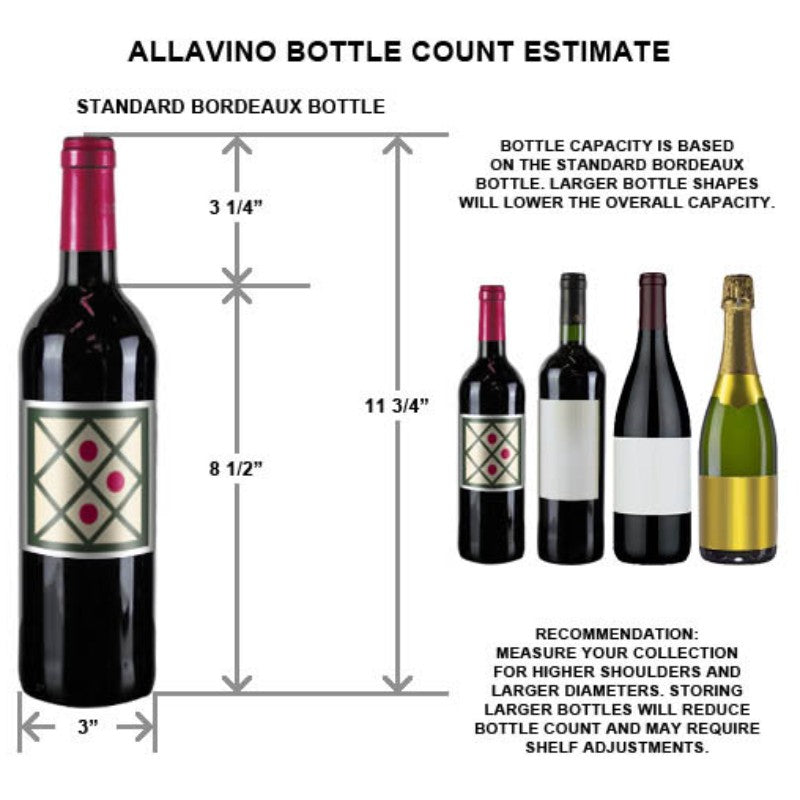

• Maximum bottle capacity requires bottles ≤3" wide, ≤8 1/2" at shoulder, ≤11 3/4" overall
• Bottom rack must be removed for a second row in bottom area

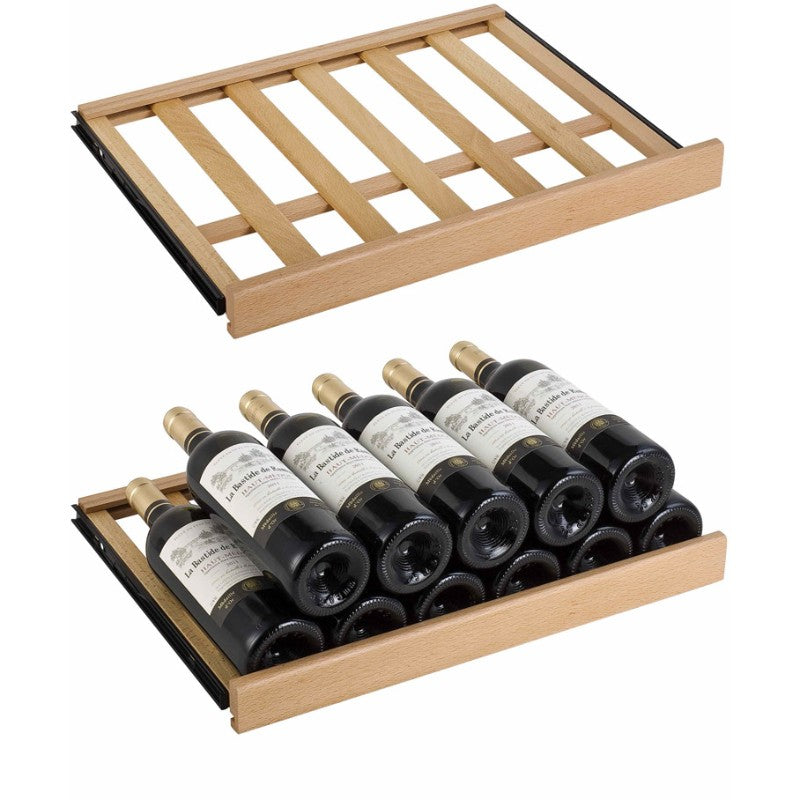

• Each sliding shelf fits 13 bottles (11 standard orientation + 2 sideways)
• Bottom area fits 6 bottles with rack or 11 bottles with rack removed; larger bottles reduce capacity

Specifications

Manuals

User Manual for Allavino 24" Wine Refrigerator 99-Bottle Dual Zone Tru-Vino YHWR99-2SR20

Parts Diagram for Allavino 24" Wine Refrigerator 99-Bottle Dual Zone Tru-Vino YHWR99-2SR20
