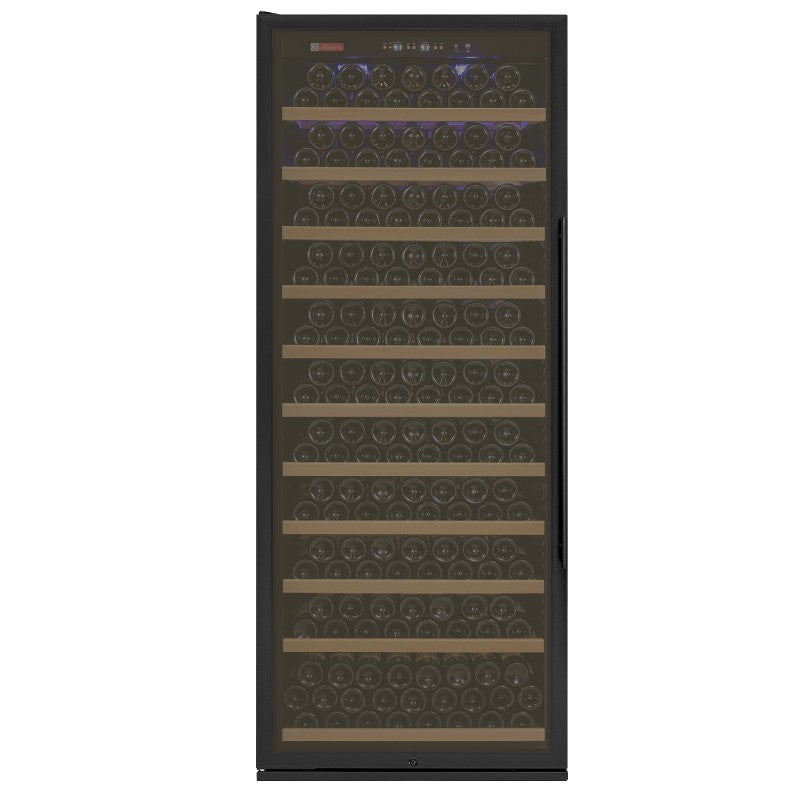

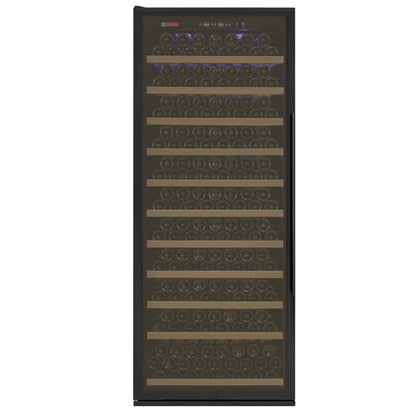

Allavino Wine Refrigerator 277 Bottle Single Zone Tru-Vino Black – YHWR305-1BL20

Allavino Wine Refrigerator 277 Bottle Single Zone Tru-Vino Black – YHWR305-1BL20

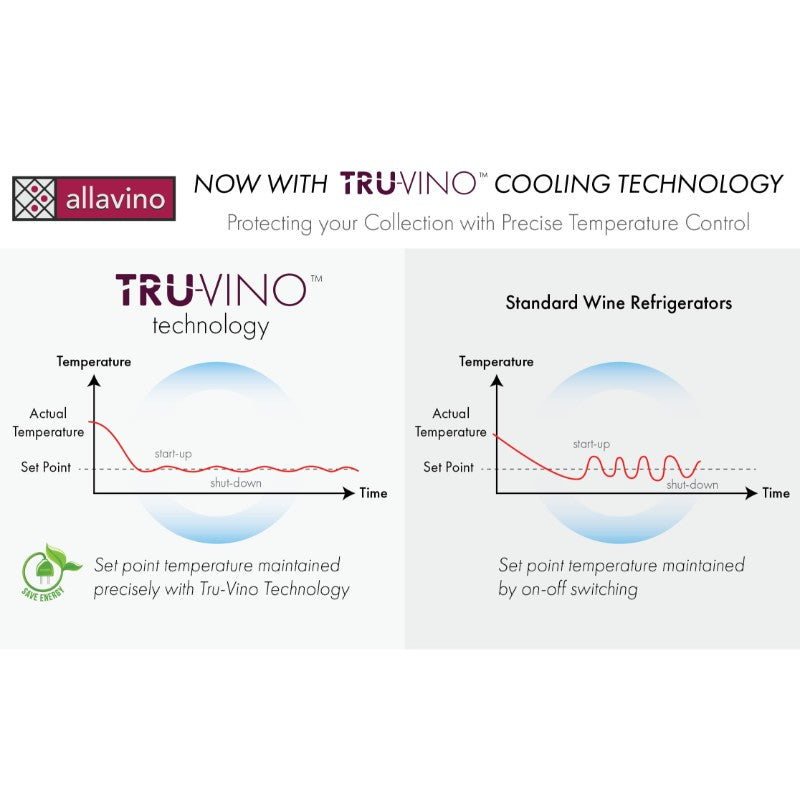

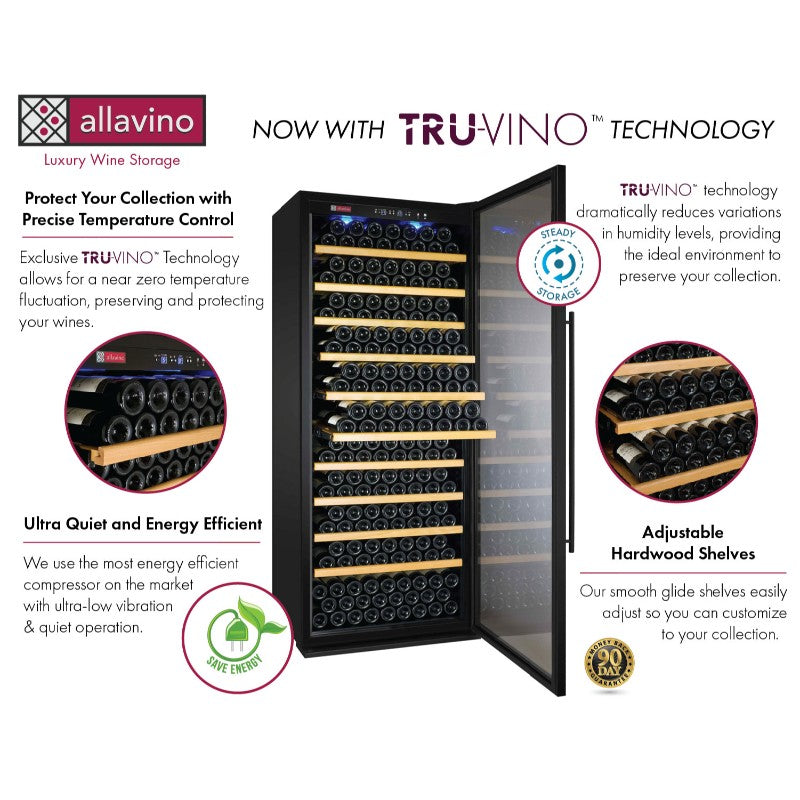

The Allavino Vite II YHWR305-1BL20 Wine Refrigerator combines elegant design with Tru-Vino Temperature Control Technology to provide precision cooling for collections up to 277 bottles. This advanced system maintains a consistent environment to protect and preserve your wine with exceptional accuracy.

User-friendly digital controls make it easy to set and monitor your ideal temperature, while the durable hardwood shelves can be adjusted to accommodate a variety of bottle sizes. Each shelf glides smoothly, giving you effortless access to every bottle without disturbing the delicate aging process.

Wine Storage

Generous single-zone storage designed for both long-term aging and serving. The wide temperature range offers flexibility to store whites at serving temps or keep reds for extended cellaring.

• Single temperature zone: store either red or white wine
• Temperature range: 41°F–72°F — broad control for serving or long-term storage
• Maximum ambient temperature: 90°F
• If ambient temperature is lower than the set point, the internal temperature will match the external environment (unit has no heater)

Capacity & Shelving

Robust hardwood shelving and smart rack design maximize capacity while accommodating larger bottles when needed.

• Maximum capacity: up to 305 bottles (based on standard bottle dimensions — see important notes)

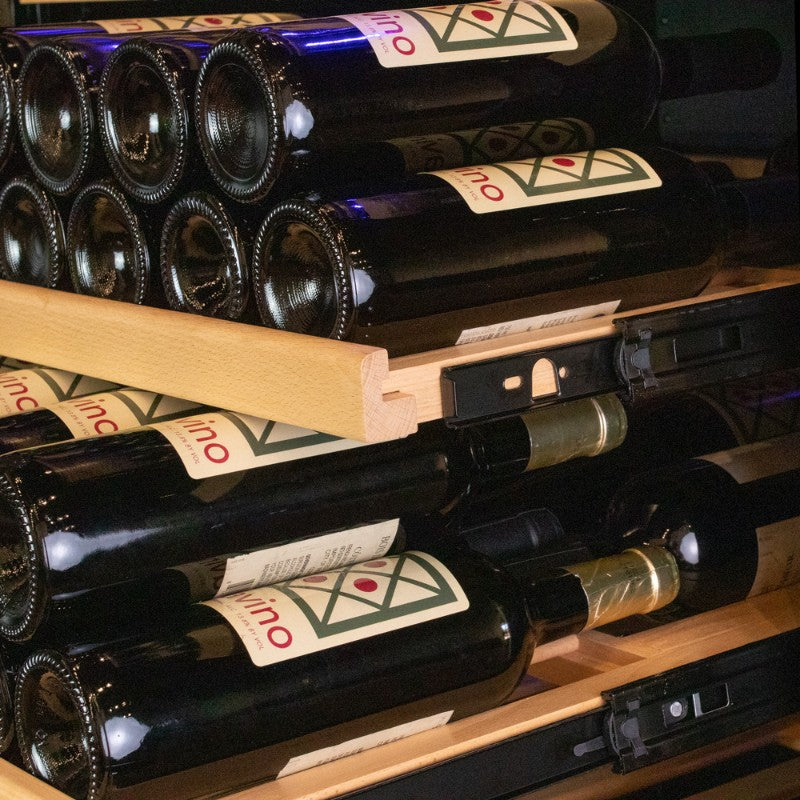

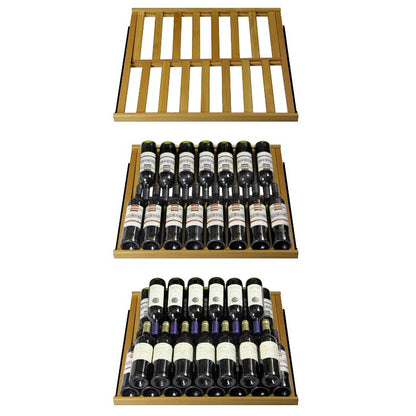

• 10 extra-thick hardwood glide-out shelves on ball-bearing tracks for smooth access
• Bottom shelf supports larger magnum bottles or up to 25 standard bottles

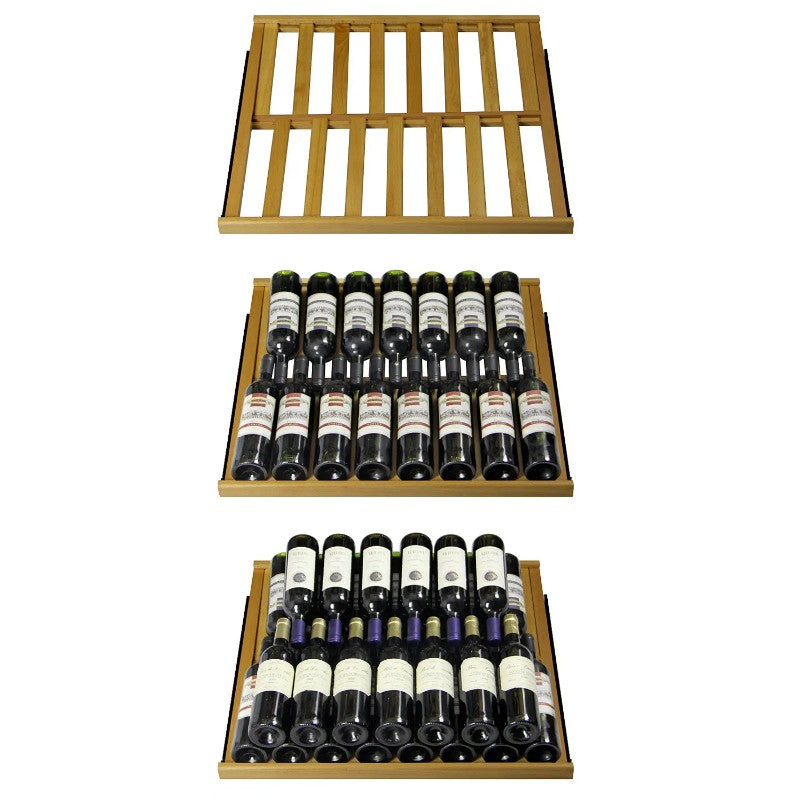

• Each hardwood shelf supports up to 28 regular-size bottles with standard spacing
• Shelves adjustable in 1-1/4" increments to fit varying bottle diameters
• Storage of larger diameter bottles will reduce overall bottle capacity

Cooling & Airflow

Dual fan-forced cooling and efficient compressor technology deliver even temperatures and faster cooldown.

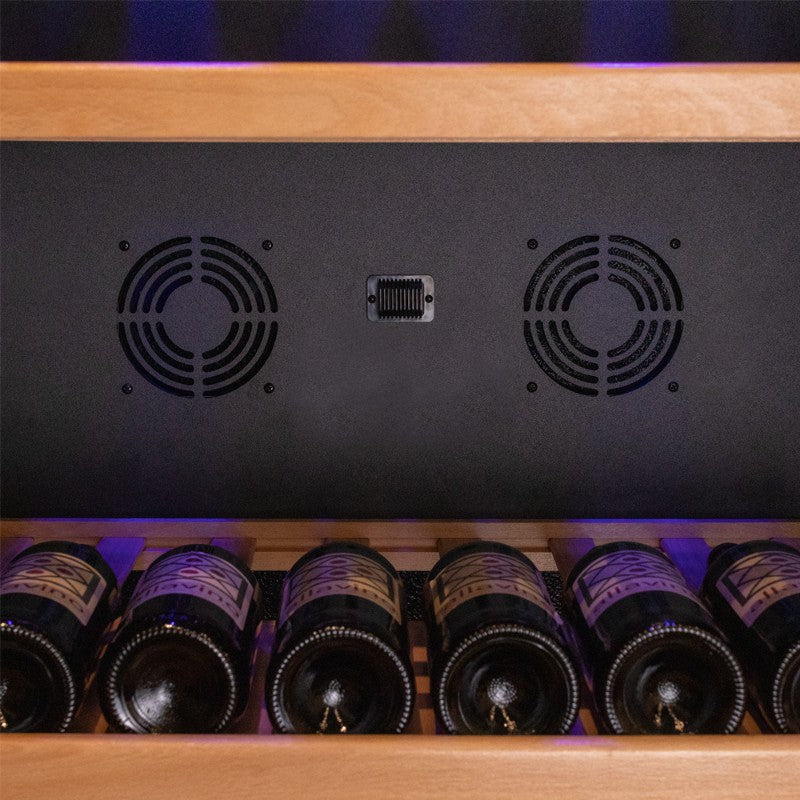

• Dual fan-forced cooling circulates air to minimize hot and cold spots
• Reduces initial cool-down time by approximately 50%
• Frost-free operation — no need to manually defrost the cabinet
• Ultra-quiet Italian inverted compressor for low-noise operation

Controls & Temperature Management

Digital temperature controls make monitoring and adjusting the wine environment quick and intuitive.

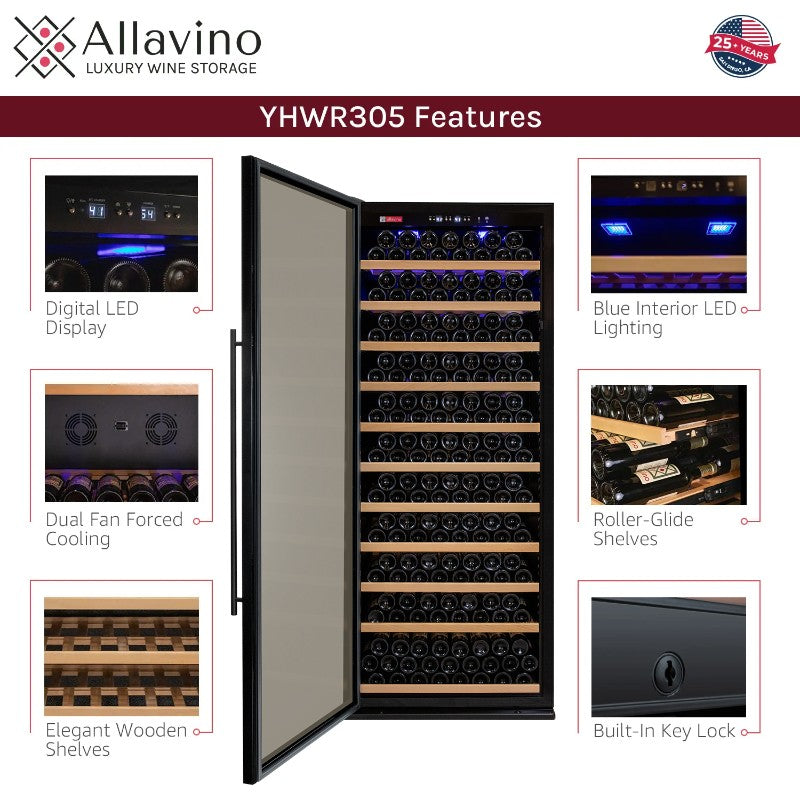

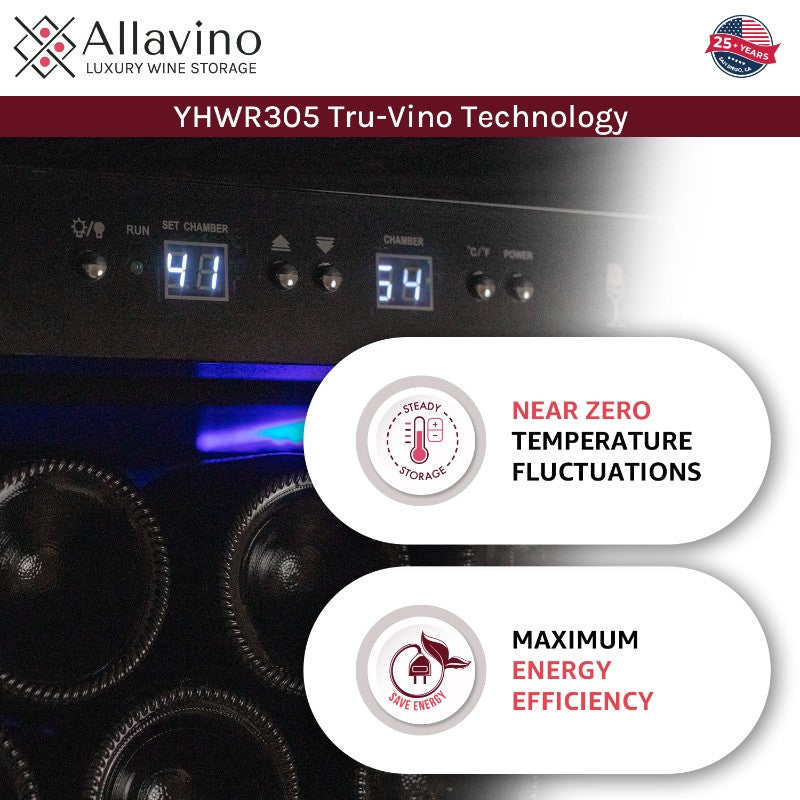

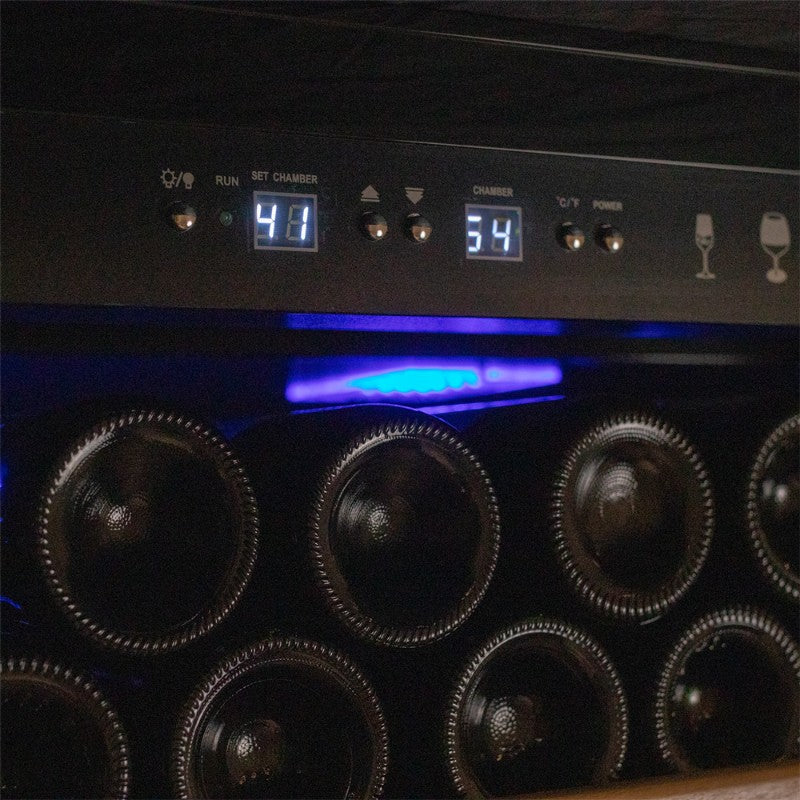

• Digital temperature display with push-button controls
• Temperature adjustable between 41°F and 72°F
• Low-E UV-protected glass and controlled environment reduce internal fluctuations

Design & Interior Lighting

Contemporary styling with low-heat LED lighting highlights your collection while protecting it from heat and harmful light exposure.

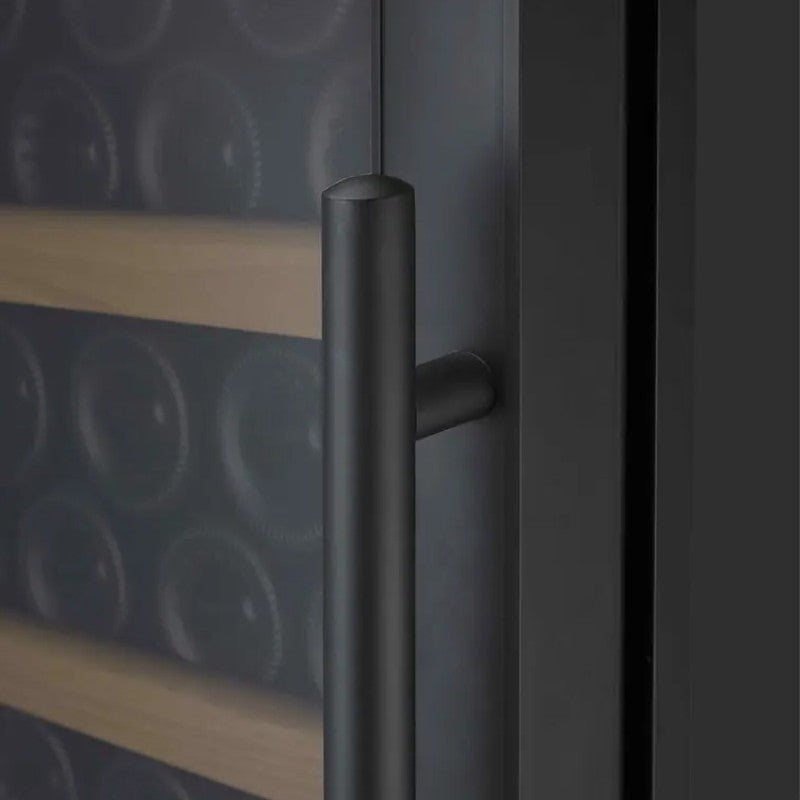

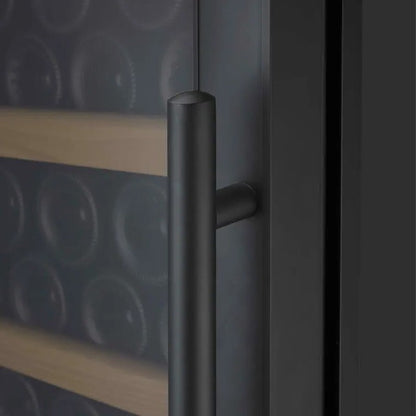

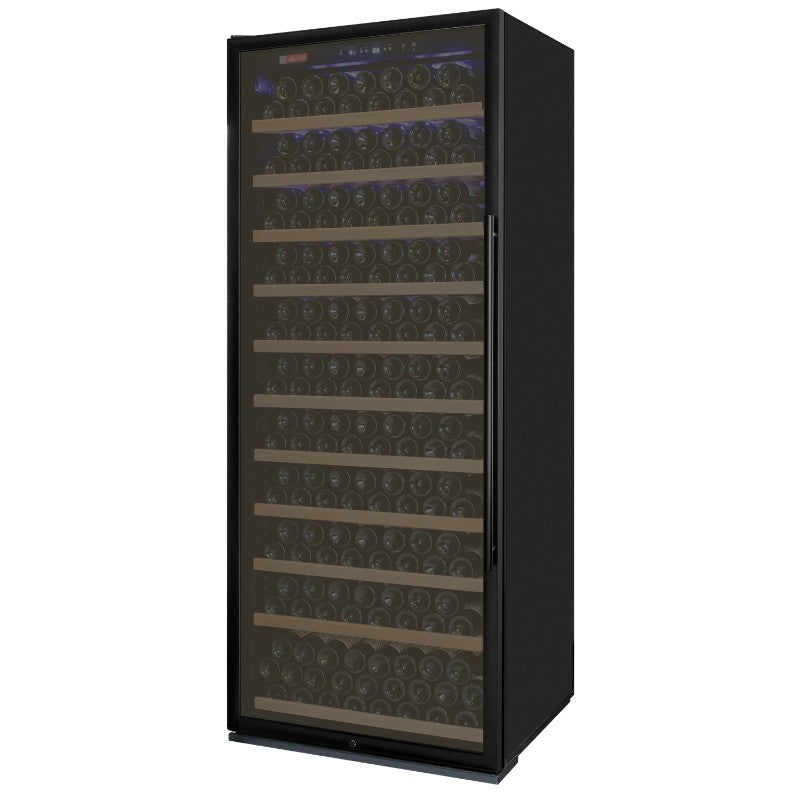

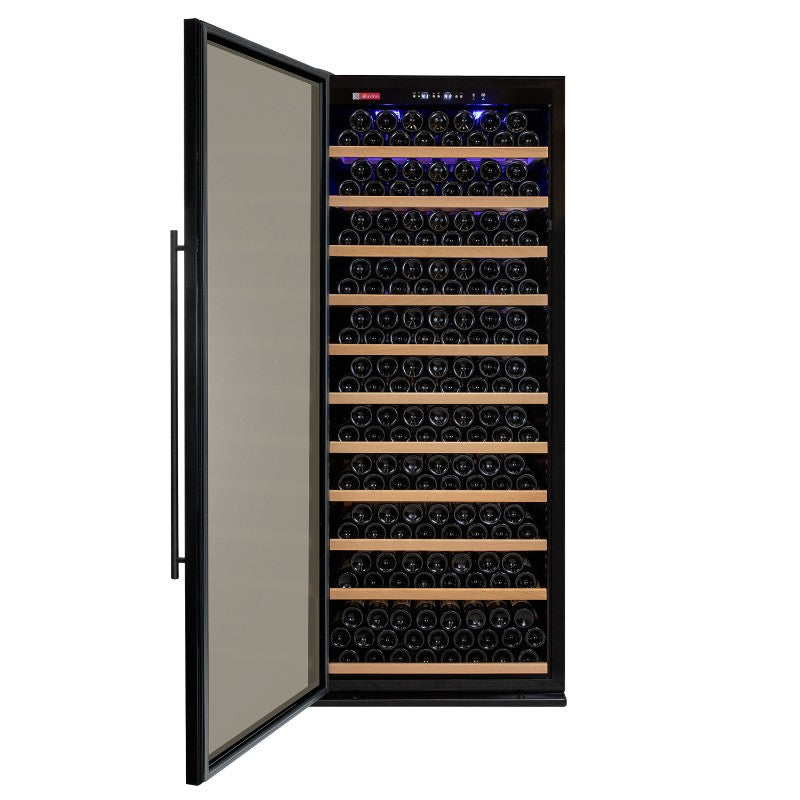

• Black cabinet with black framed glass door and towel bar handle

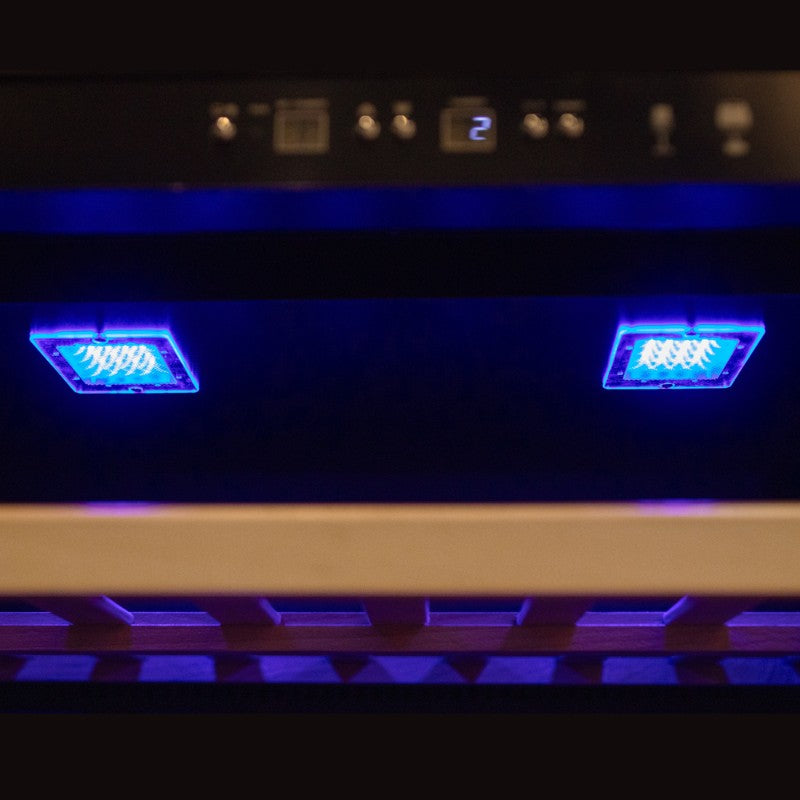

• Interior Blue LED lighting — low heat, continuous display option
• Activated charcoal air filter helps prevent odors from penetrating corks
• Magnetic door gasket ensures a tight seal

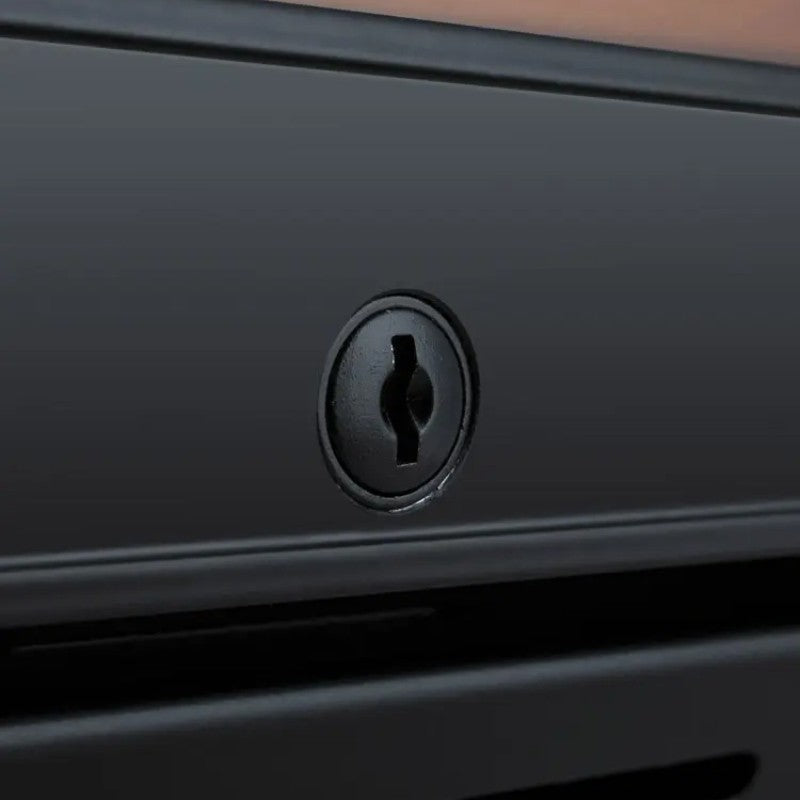

Door, Glass & Security

Insulated, UV-protected glass combined with secure hardware protects and displays your collection.

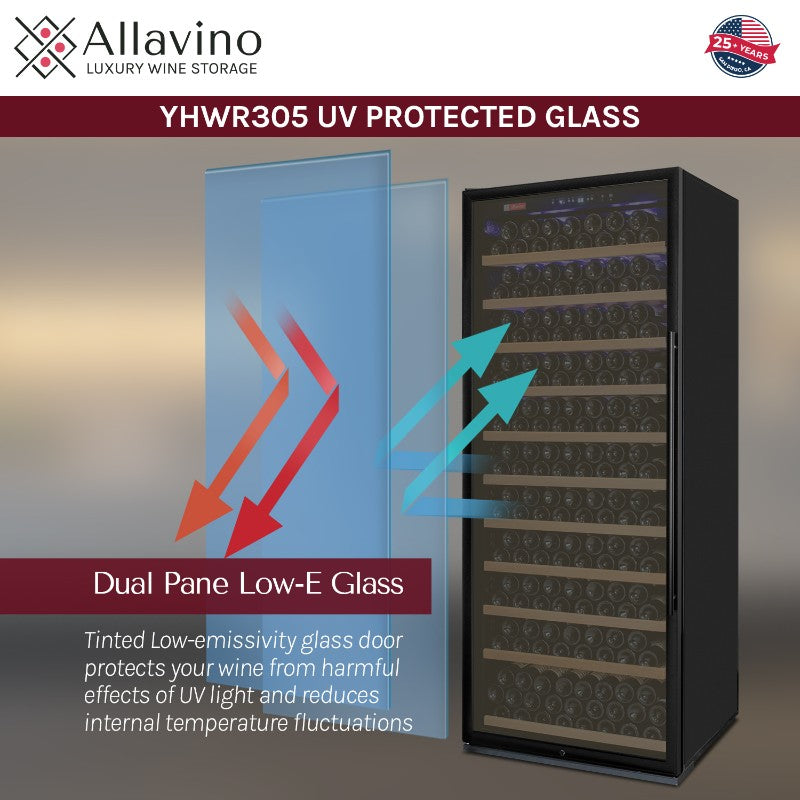

• UV-protected, low-emissivity glass resists harmful light and reduces temperature fluctuation
• Frost- and condensation-free viewing
• Two handle options (towel bar style included)

Performance & Technical

Engineered for efficient, quiet performance suitable for home or light commercial use.

• Ultra-quiet Italian inverted compressor
• Fan-forced cooling for even temperatures
• Approximate noise: low operational dB (quiet operation)

Dimensions & Weight

Full-height design with a substantial storage footprint—measure carefully for installation.

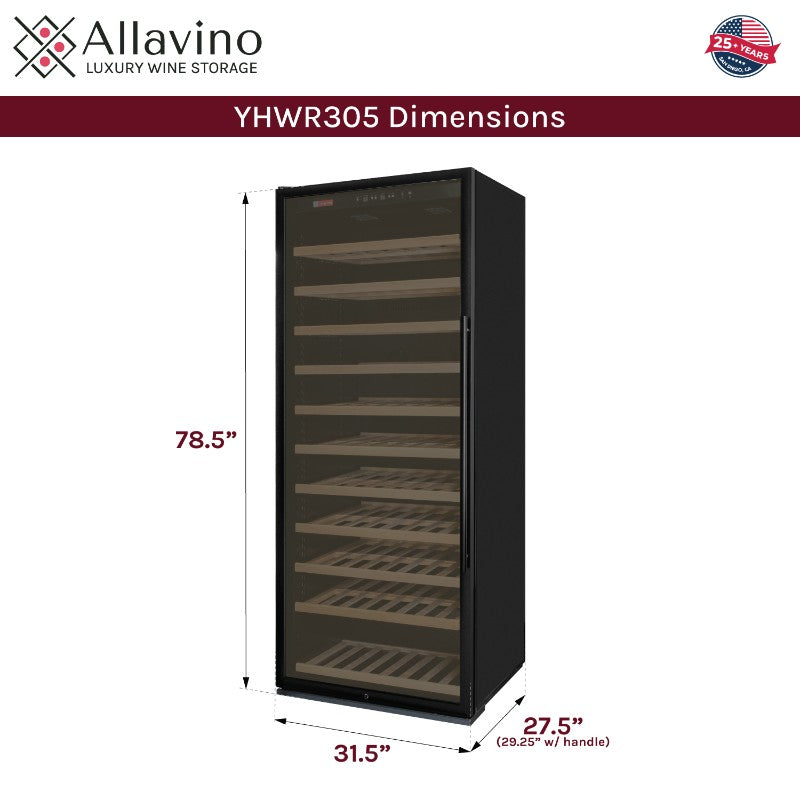

• Unit dimensions: 31 1/2" W x 27 1/2" D (29 1/4" w/ handle) x 78 1/2" H
• Packaging dimensions: 37 1/2" W x 34" D x 87 1/2" H
• Weight: 325 lbs.

Warranty

Comprehensive coverage for parts, labor and core components.

• 1 year on parts & labor
• 5 years parts only on compressor and sealed system

Important Notes

Guidelines to reach stated capacity and ensure optimal performance.

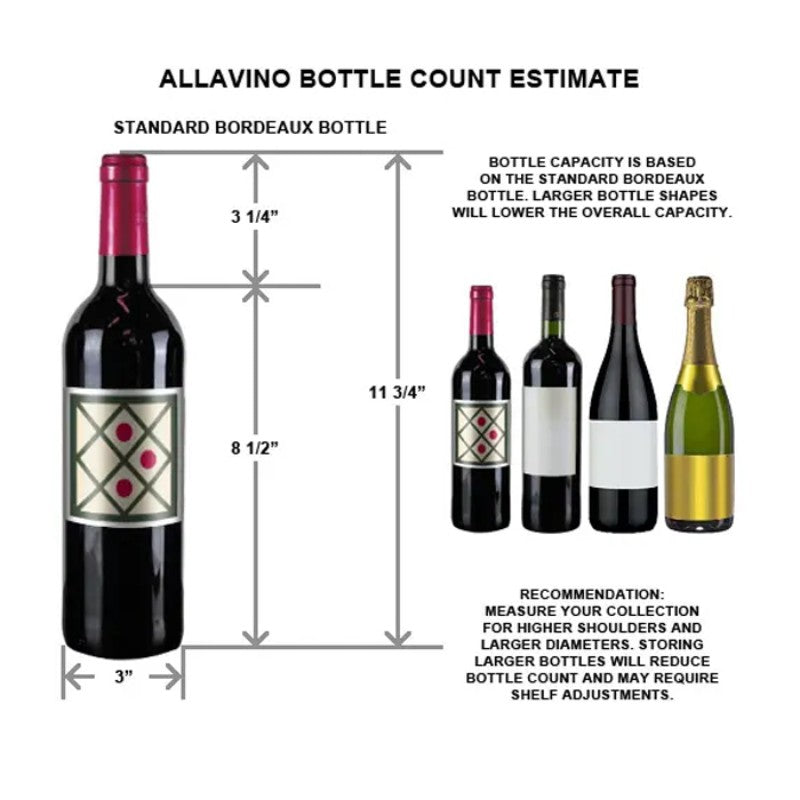

• Capacity assumes standard bottles no wider than 3", no taller than 8 1/2" at the shoulder, and no taller than 11 3/4" overall
• With standard racking and bottle sizes, each sliding shelf holds up to 28 bottles; bottom shelf holds up to 25 bottles
• Larger bottles will reduce total capacity
• Activated charcoal filter and controlled ventilation help protect wine from odors and temperature swings

Specifications

Manuals

User Manual for Allavino Wine Refrigerator 277 Bottle Single Zone Tru-Vino Black – YHWR305-1BL20

Parts Diagram for Allavino Wine Refrigerator 277 Bottle Single Zone Tru-Vino Black – YHWR305-1BL20
