Allavino Wine Refrigerator 99 Bottle Single Zone Black Door YHWR99-1SR20

Allavino Wine Refrigerator 99 Bottle Single Zone Black Door YHWR99-1SR20

The Allavino Vite II YHWR115-1SR20 Wine Refrigerator with Tru-Vino Temperature Control Technology offers a sleek freestanding design and storage for up to 99 bottles. Preserve your collection with Allavino’s advanced cooling system, easily managed through the intuitive digital control panel for precise and consistent temperature stability.

Inside, durable hardwood shelves adjust to accommodate various bottle sizes, while smooth gliding rails provide effortless access without disturbing the delicate aging process.

Wine Storage

Single-zone storage designed for flexible long-term or serving conditions with an exceptionally wide temperature range. Ideal for storing either reds or whites depending on your set point.

• Single temperature zone (store red or white wine)
• Temperature adjustable between 41°F and 73°F — one of the largest ranges available
• Maximum ambient temperature: 90°F
• Minimum ambient temperature: unit will match external temperature if ambient is lower (unit has no heater)
• Internal fan-forced cooling for even temperatures and reduced hot/cold spots

Capacity & Shelving

Smart racking and adjustable shelving maximize usable space while accommodating varying bottle sizes.

• Standard maximum capacity: up to 99 bottles (standard-size bottles)

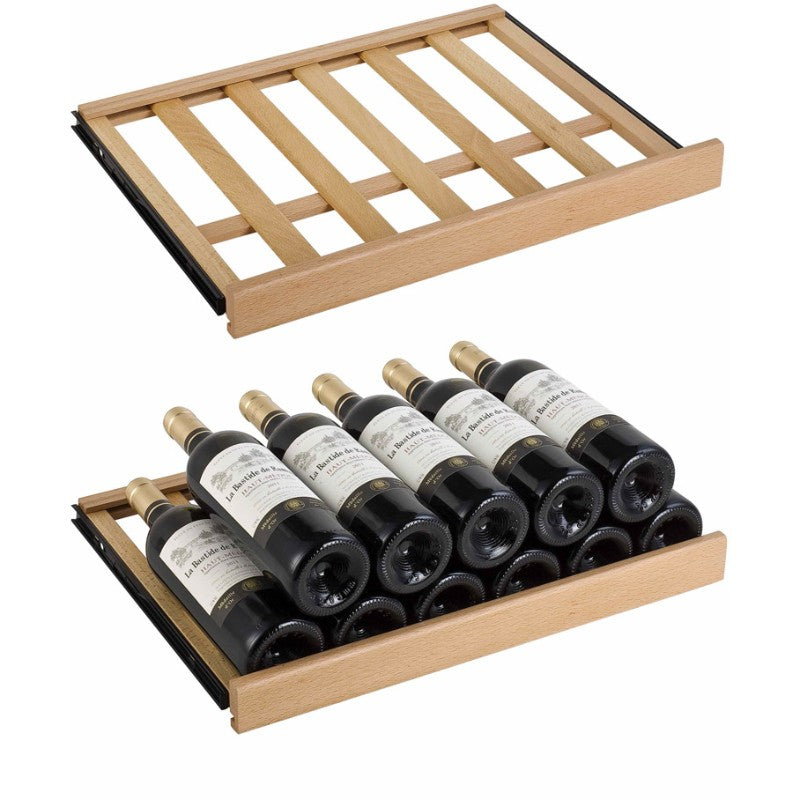

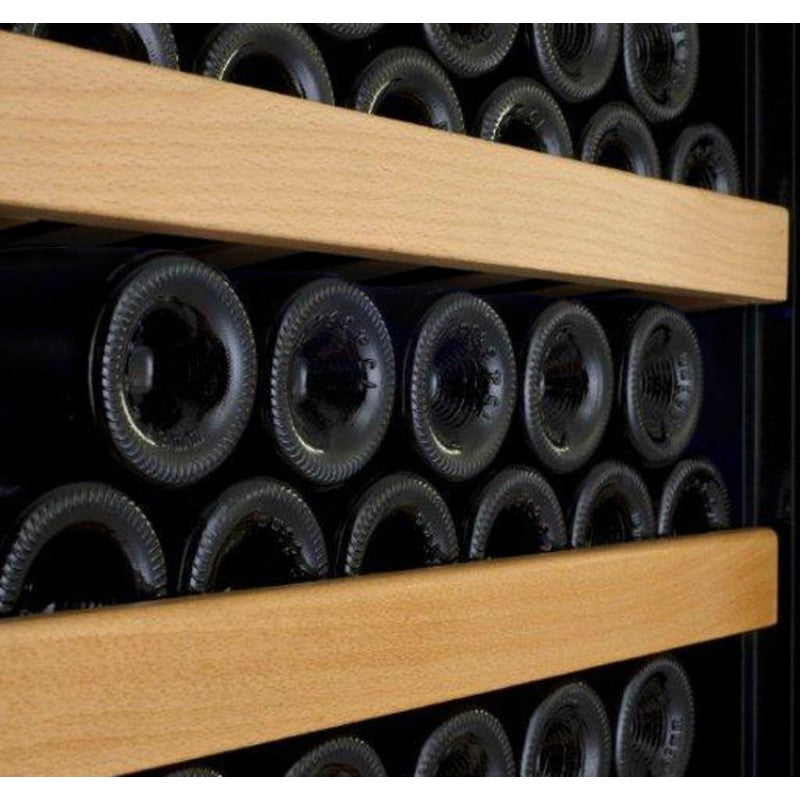

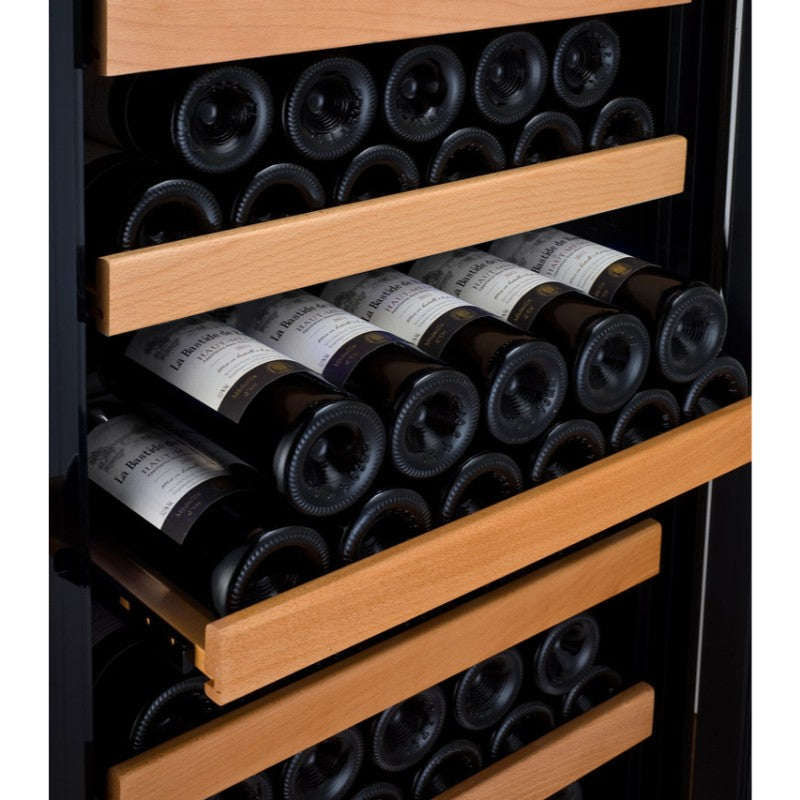

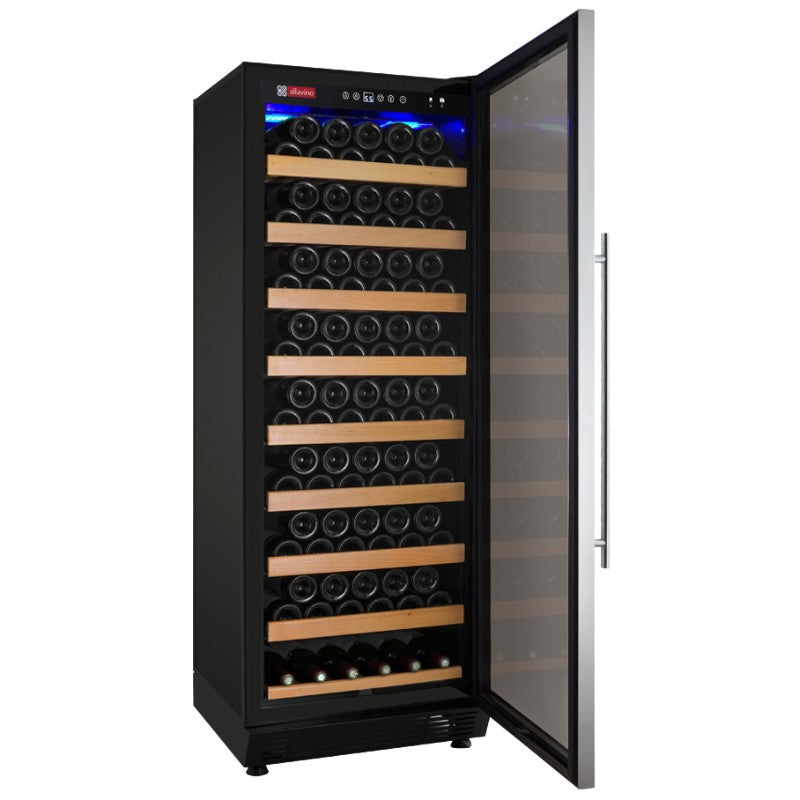

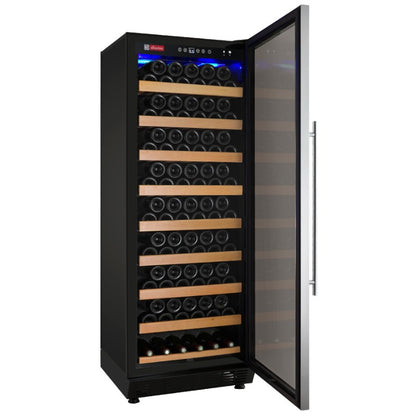

• 8 RackEasy rolling hardwood shelves glide on ball-bearing tracks
• Shelves adjustable in 1-1/4" increments to fit larger diameter bottles
• Extra-thick hardwood construction supports two rows on shelves where applicable
• Bottom rack can be removed to allow a second row in the bottom area (see important notes)

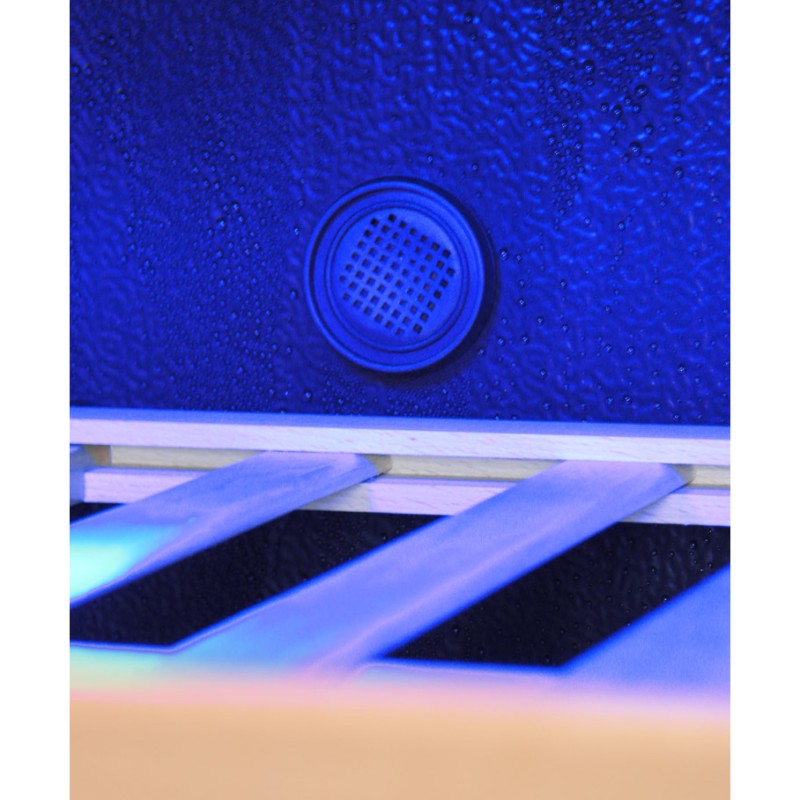

• Activated charcoal air filter helps reduce odors that could penetrate corks

Controls & Temperature Management

Digital, user-friendly controls make setting and monitoring temperature quick and intuitive.

• Digital temperature display with push-button controls
• Lighted display is visible through the glass door for easy monitoring without opening

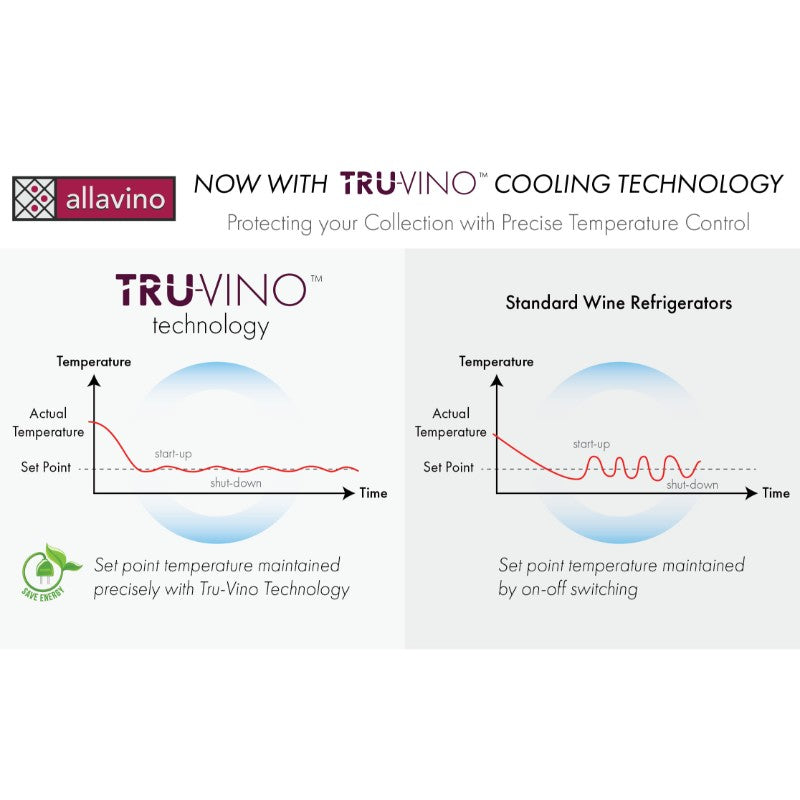

• Tru-Vino / LightTru-Vino temperature control technology maintains near-zero fluctuations
• Fan-forced circulation reduces initial cool-down time and stabilizes internal climate

Design & Interior

Modern black finish and cool LED lighting showcase your collection while protecting it from damaging heat and light.

• Black cabinet with black framed, tinted glass door (hinge on right)
• Blue LED interior lighting beautifully illuminates bottles without producing heat
• Magnetic door gasket ensures a tight seal
• 4 adjustable leveling feet for stable installation

Door, Handles & Security

Secure, insulated viewing door with handle options to match your aesthetic and installation needs.

• UV-protected, argon-filled, double-pane thermal insulated glass

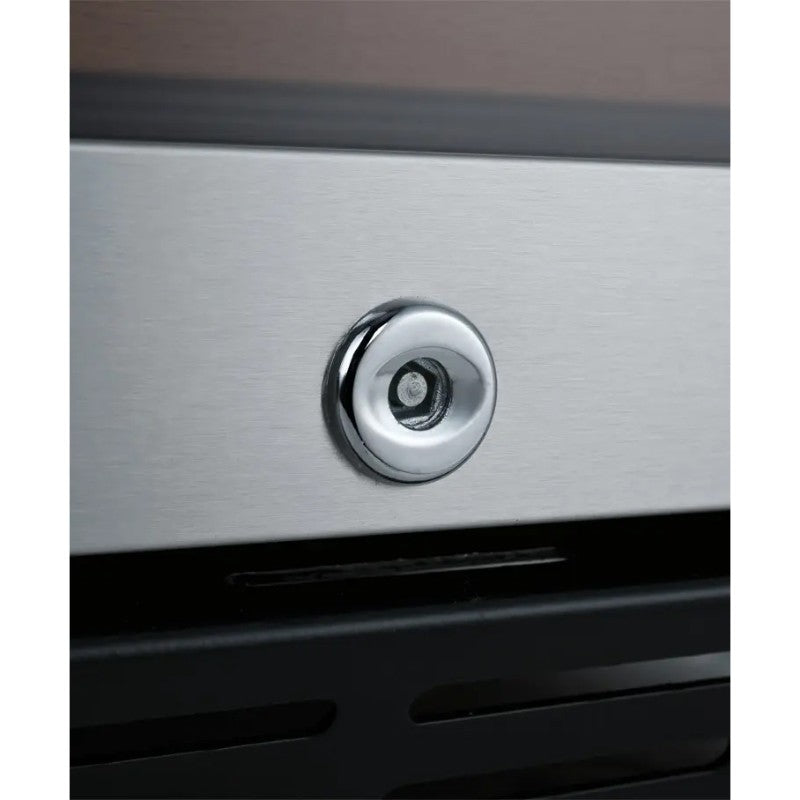

• Built-in key lock with two keys for collection security

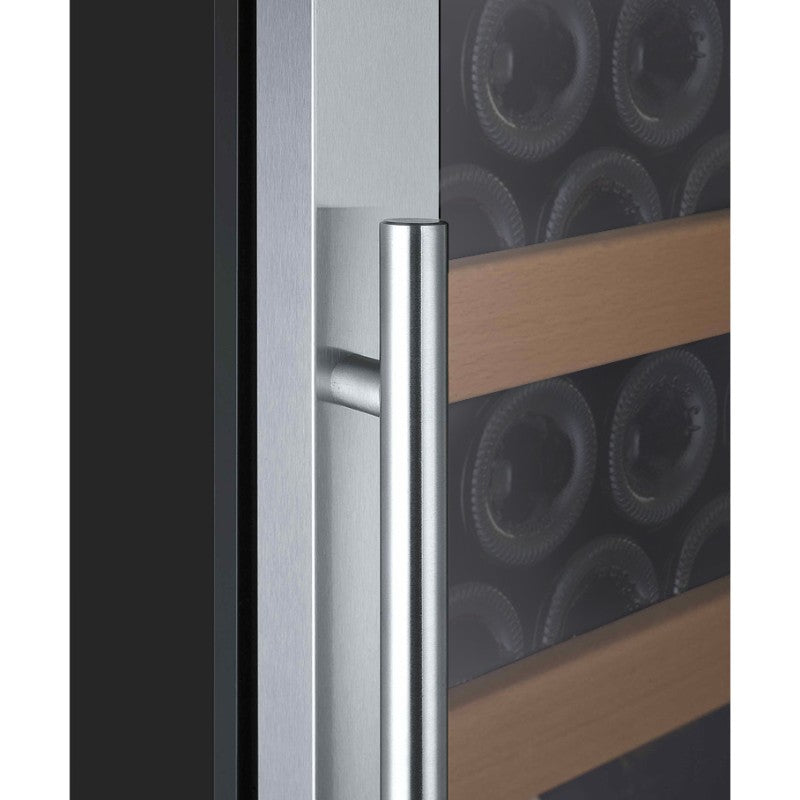

• Towel bar and curved handles included (choose preferred style)
• Magnetic gasket for tight closure and insulation

Performance & Technical

Quiet, efficient performance designed for home or light commercial use.

• 175 W motor (0.95 kW·h/24 hr)
• Operating noise: approximately 40 dB
• Fan-forced cooling creates frost-free environment

Dimensions & Weight

Compact freestanding footprint suitable for a variety of spaces.

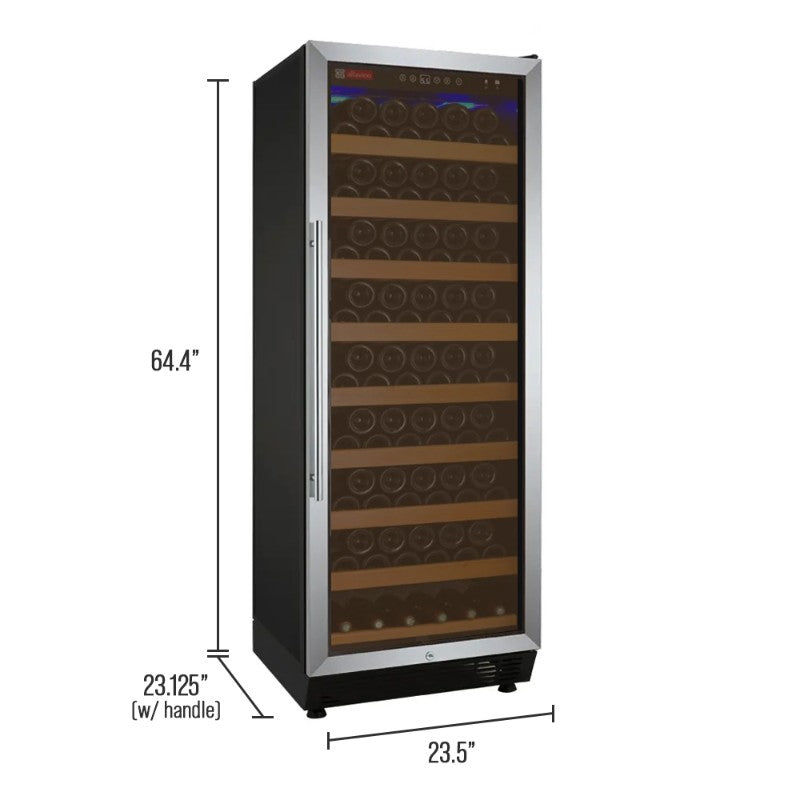

• Unit dimensions: 64 3/8" H x 23 1/2" W x 23 1/8" D (with handle)
• Packaging dimensions: 67 1/4" H x 26 1/8" W x 24 1/2" D
• Weight: 167 lbs.

Warranty

Reliable coverage for parts, labor and core components.

• 1 year on parts & labor
• 5 years parts only on compressor and sealed system

Important Notes

Guidelines to achieve stated capacity and ensure proper operation.

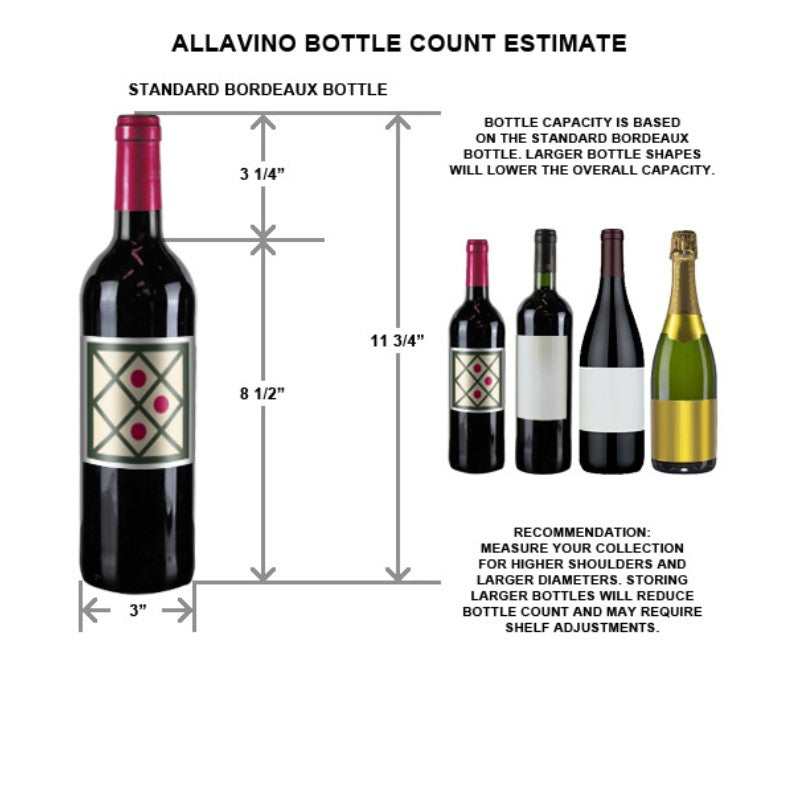

• To reach maximum bottle capacity, bottles must be ≤ 3" wide, ≤ 8 1/2" at the shoulder, and ≤ 11 3/4" overall
• Bottom rack must be removed to allow a second row of bottles in the bottom area
• Unit can fit up to 99 standard bottles; larger bottles will reduce capacity
• Displayed temperature may vary due to ambient conditions; internal fan circulation helps minimize variance

Specifications

Manuals

User Manual for Allavino Wine Refrigerator 99 Bottle Single Zone Black Door YHWR99-1SR20

Parts Diagram for Allavino Wine Refrigerator 99 Bottle Single Zone Black Door YHWR99-1SR20
