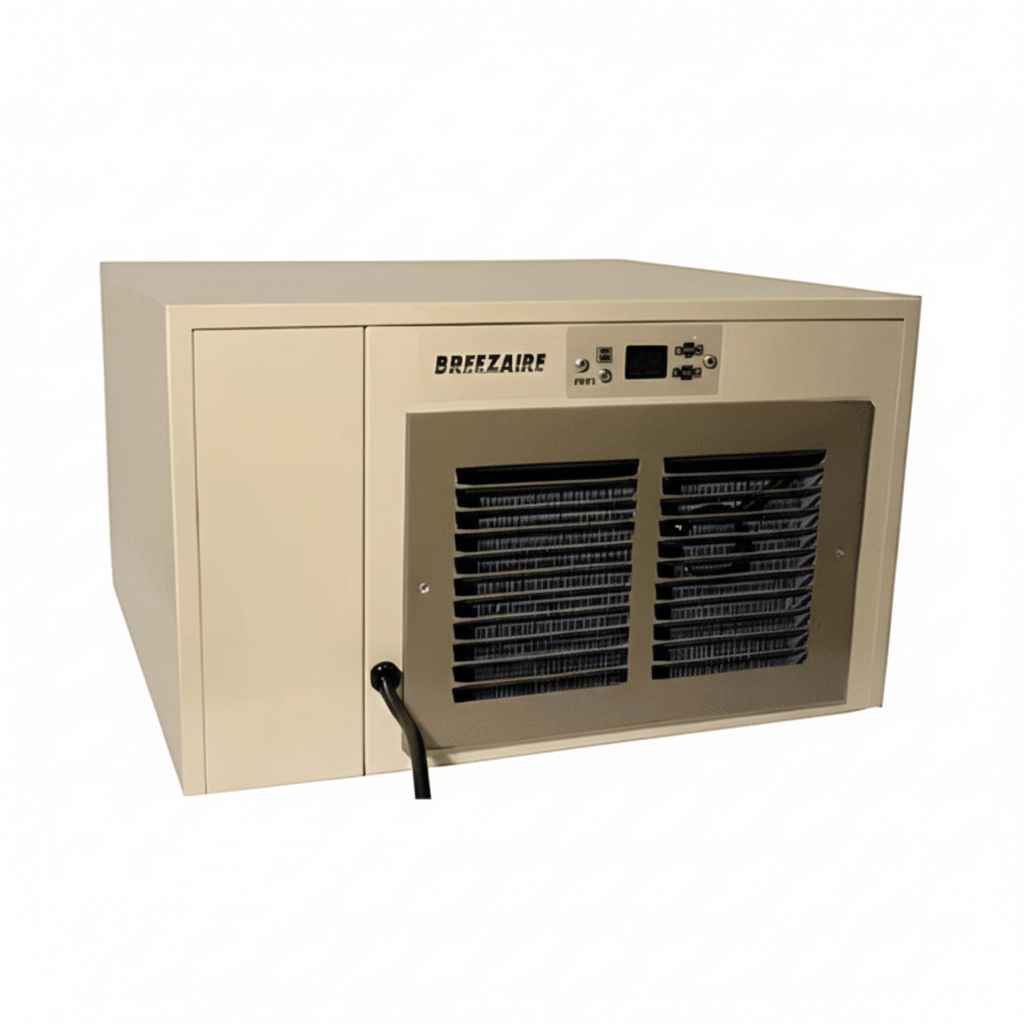

Breezaire WKCE 1060 Wine Cabinet Cooling Unit

The Breezaire WKCE 1060 is a compact, self-contained wine cabinet cooling unit designed for enclosed wine storage spaces up to approximately 140 cubic feet. Its through-the-wall design makes it suitable for wine cabinets and other compact, enclosed wine storage applications where dedicated temperature control is required.

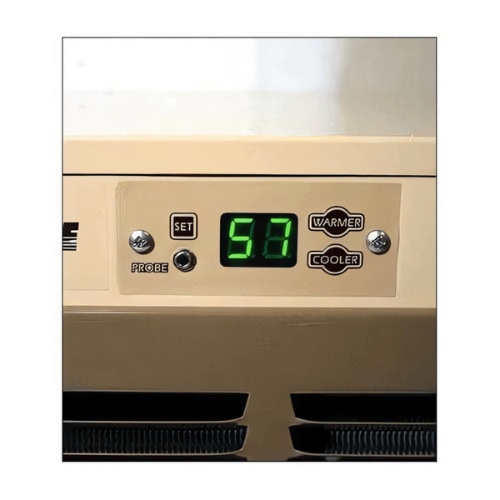

The WKCE 1060 uses a Sentry III digital electronic thermostat with a digital temperature readout and a specified temperature range of approximately 50–60°F. The system also provides automatic humidity support through moisture management and includes memory protection to preserve controller settings following a power interruption.

With a 1,060 BTU cooling capacity and an approximate operating noise level of 58 dBA, the WKCE 1060 is designed for compact residential wine cabinet applications. The unit provides bottom cold-air discharge and rear or top hot-air exhaust, with proper airflow required for effective operation.

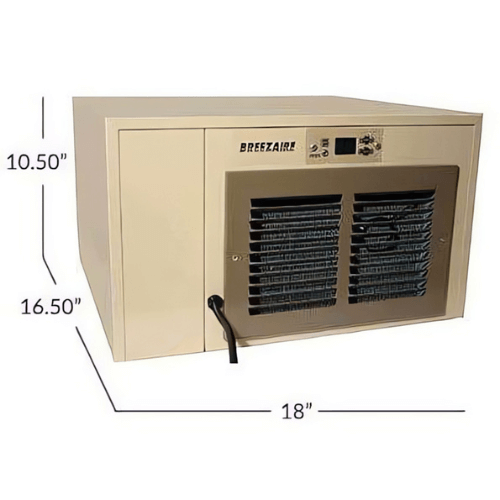

The WKCE 1060 is also designed as a direct replacement for Breezaire WKC 1060 and OEM 1060 systems. It operates on 115V / 60Hz / 3A electrical service and measures 10.5" H × 18" W × 16.5" D, with a listed weight of 45 lbs.

Cooling System Specifications

Dimensions

Key Features

• Up to 140 Cu. Ft. Capacity: Designed for enclosed wine cabinets and compact wine storage spaces up to approximately 140 cubic feet.
• 1,060 BTU Cooling Capacity: Provides the cooling capacity specified for compact wine cabinet applications.
• Self-Contained Design: Integrates the cooling components into a single unit for compact wine storage applications.
• Through-the-Wall Installation: Designed for installation through the wall of an enclosed wine cabinet or compact wine storage enclosure.
• Sentry III Digital Thermostat: Provides digital temperature control and monitoring across the specified 50–60°F temperature range.
• Automatic Humidity Support: Helps manage cabinet humidity through moisture removal and natural evaporation.
• Automatic Defrost: The automatic defrost system helps manage frost buildup during operation.
• Bottom Cold-Air Discharge: Directs cooled air through the bottom of the unit for cabinet-style wine storage installations.
• Rear or Top Exhaust: Provides options for exhausting warm air from the cooling unit, with adequate airflow required around the exhaust side.
• Replacement Compatibility: Designed as a direct replacement for older Breezaire WKC 1060 and OEM 1060 systems.

Installation Requirements

Wine Cabinet Sizing Considerations

The WKCE 1060 is rated for enclosed wine cabinets and compact wine storage spaces up to approximately 140 cubic feet. Proper sizing depends on more than cabinet volume alone. Insulation quality, door sealing, ambient temperature, ventilation, heat exposure, and the amount of air leakage can all affect the cooling load.

• Well-Sealed Cabinet: The WKCE 1060 is typically appropriate when the cabinet is under 140 cubic feet and properly constructed.
• Near Capacity: Verify insulation, ambient conditions, and ventilation before selecting the unit.
• Warm Installation Area: A higher-capacity unit or professional sizing review may be appropriate when the cabinet is installed in a particularly warm environment.
• Open or Unsealed Space: The WKCE 1060 is not intended to cool an open room or poorly sealed enclosure.

Replacement Compatibility

Optional Bottle Probe

The optional Breezaire Bottle Probe provides direct temperature monitoring of liquid inside a wine bottle rather than relying solely on the surrounding air temperature. Breezaire identifies the Bottle Probe as compatible with its WKL, WKE, and WKC series cooling units.

Warranty

The Breezaire WKCE 1060 includes a 1-year labor warranty and 5-year parts warranty, according to the manufacturer's listed specifications.

Resources

• WKCE 1060 Installation Manual
• Breezaire Sentry III Controller Owner's Manual
• Breezaire Self-Contained Units Warranty
