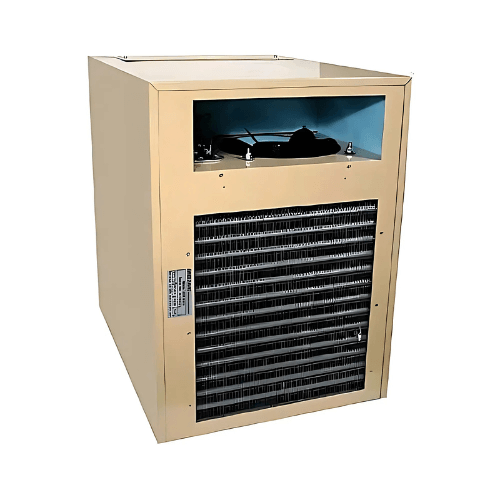

Breezaire WKL 8000 Wine Cellar Cooling Unit

The Breezaire WKL 8000 is a self-contained, through-the-wall wine cellar cooling system designed for properly insulated wine cellars up to 2,000 cubic feet. With an 8,000 BTU cooling output, it is designed for large residential wine cellars, custom wine rooms, and substantial wine storage applications where a self-contained cooling system is preferred.

The WKL 8000 uses electronic temperature controls with an LED digital readout and automatic humidity management. The system is designed to maintain cellar temperatures between 50–60°F while supporting relative humidity between approximately 50–75% under normal operating conditions. Automatic defrost helps manage frost accumulation during operation.

Its through-the-wall installation places the cooling system directly through the cellar wall and exhausts warm air through the rear of the unit. The self-contained design does not require a separate remote condenser, refrigerant line installation, or field refrigerant charging, making it a practical option when a through-the-wall configuration fits the cellar design.

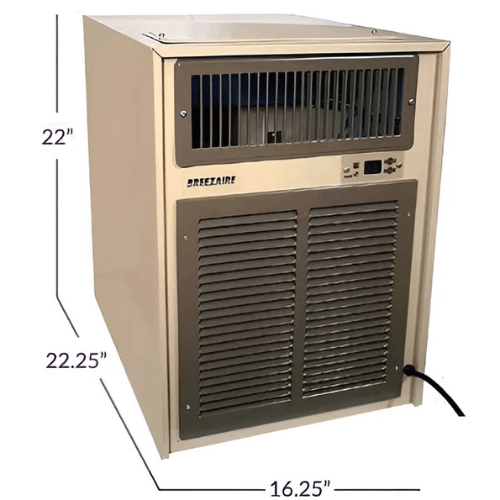

The WKL 8000 measures 22" H × 16.25" W × 22.25" D, weighs 101 lbs., and operates on 115V / 60Hz / 10A electrical service. Proper insulation, vapor protection, a sealed cellar, and adequate exhaust ventilation are important for the system to operate as intended.

Cooling System Specifications

Key Features

• Up to 2,000 Cu. Ft. Capacity: Designed for properly insulated wine cellars up to approximately 2,000 cubic feet, making it suited to large residential wine storage spaces.
• 8,000 BTU Cooling Output: Provides the cooling capacity specified for large wine cellar applications.
• Self-Contained Design: Integrates the cooling components into one unit, eliminating the need for a separate remote condenser or refrigerant line installation.
• Through-the-Wall Installation: Mounts directly through the cellar wall and vents warm air to the adjacent area, making it suitable for cellar designs where a self-contained system is preferred.

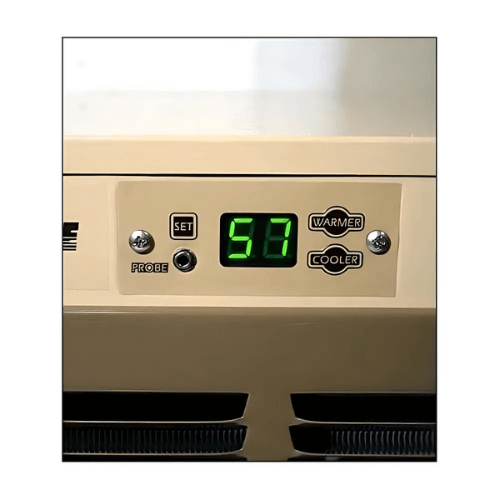

• Sentry III+ Digital Controls: Provides electronic temperature adjustment, LED temperature monitoring, power-failure protection, and blocked-airflow detection.
• Automatic Humidity Management: Supports relative humidity between approximately 50–75% under normal operating conditions to help maintain the cellar environment.
• Automatic Defrost: Automatically manages frost accumulation during operation.
• Rear Exhaust: Standard configuration exhausts warm air through the rear of the unit, requiring sufficient ventilation and clearance around the exhaust area.
• Low-Vibration Design: Vibration-reducing components are designed to help minimize vibration transfer to stored wine.
• Optional Bottle Probe: A compatible bottle probe can monitor the temperature of the wine inside a bottle rather than relying only on surrounding air temperature.

Installation Requirements

Wine Cellar Sizing Considerations

The WKL 8000 is rated for wine cellars up to approximately 2,000 cubic feet, but cellar volume alone should not be used to determine cooling-system requirements. Insulation quality, vapor-barrier construction, ambient temperature, door construction, glass exposure, and ventilation can all affect the actual cooling load.

• Proper Insulation: The cellar should be properly insulated to help maintain the desired storage environment.
• Vapor Protection: A proper vapor barrier is required for the wine cellar construction.
• Exhaust Ventilation: The adjacent space must have adequate ventilation to dissipate heat from the rear exhaust.
• Cellar Size: The WKL 8000 is intended for cellars up to approximately 2,000 cubic feet under appropriate operating conditions.
• Environmental Conditions: Ambient temperature and glass exposure can affect the required cooling capacity.

Standard and Optional Configurations

Note: Optional factory modifications are special-order configurations and may add production time. Modified units may also be non-returnable or non-cancelable after manufacturing.

Replacement Compatibility

Optional Bottle Probe

The optional Breezaire Bottle Probe can monitor the temperature of the wine inside a bottle rather than measuring only the surrounding air. Breezaire identifies the Bottle Probe as compatible with WKL, WKE, and WKC series cooling systems.

Warranty

The Breezaire WKL 8000 includes a 1-year labor warranty and 5-year parts warranty according to the manufacturer's listed specifications.
