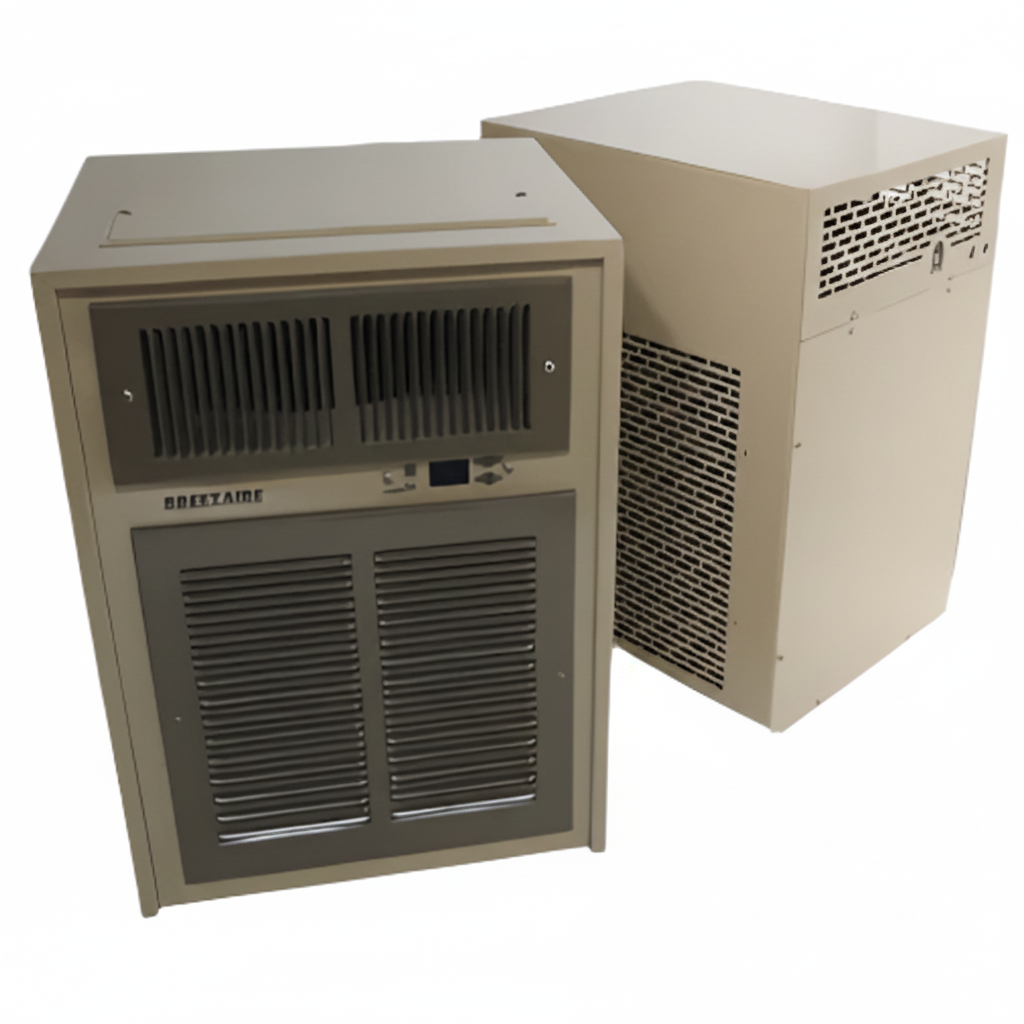

Breezaire WKSL 4000 Split Wine Cellar Cooling System

The Breezaire WKSL 4000 is a professional split-system wine cellar cooling unit designed for properly constructed and insulated wine cellars up to approximately 1,000 cubic feet. The system separates the evaporator and condenser into two independently installed modules, providing installation flexibility while helping reduce operating noise inside the wine cellar.

The WKSL 4000 features Breezaire's Sentry III+ digital control system with electronic controls and a digital temperature display. Automatic humidity management, a high-temperature alarm, and power-outage protection help maintain controlled conditions for long-term wine storage.

The split-system configuration allows the condenser to be positioned away from the wine cellar. The condenser can be placed up to 50 feet from the cellar, helping reduce operational sound within the storage area while providing additional installation flexibility. The system also incorporates vibration-dampening components to help reduce disturbance within the cellar environment.

The WKSL 4000 requires professional HVAC or refrigeration installation. Installation requires copper refrigerant lines, low-voltage control wiring, system evacuation, refrigerant charging, and a properly constructed wine cellar with adequate insulation, a continuous vapor barrier, sealed doors, and appropriate condenser ventilation.

Quick Specifications

System Components

Key Features

• Up to 1,000 Cu. Ft. Cellar Capacity: Designed for properly constructed and insulated wine cellars up to approximately 1,000 cubic feet.
• Split-System Configuration: Separates the evaporator and condenser into two modules, providing greater installation flexibility.
• Remote Condenser Placement: The condenser can be positioned up to 50 feet from the wine cellar, helping reduce operating noise inside the cellar.

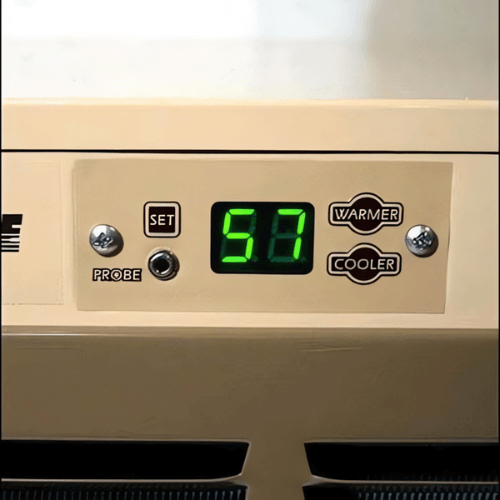

• Sentry III+ Digital Controls: Provides electronic temperature controls and a digital temperature display, along with high-temperature alarm and power-outage protection.
• Automatic Humidity Management: Helps manage humidity within the wine cellar environment.
• Low-Vibration Design: Vibration-dampening components help reduce disturbance within the wine cellar.
• Professional Installation: The split system requires qualified HVAC or refrigeration installation, including refrigerant-line connection, evacuation, and charging.
• R-134a Refrigerant: The WKSL 4000 uses R-134a refrigerant.
• Flexible Installation: Separate system components allow the condenser and evaporator to be positioned independently according to the installation requirements.

Installation Requirements

Cellar Construction Considerations

The WKSL 4000 is designed to operate in a properly constructed wine cellar. Cellar construction and environmental conditions can affect the cooling load and overall system performance.

• Insulation: Proper wall and ceiling insulation is required.
• Vapor Barrier: A continuous vapor barrier is required.
• Door Sealing: The cellar door should be properly sealed.
• Ambient Temperature: Controlled ambient conditions are important for proper system performance.
• Glass Exposure: Extensive glass exposure can increase the cooling load.
• Condenser Ventilation: Proper ventilation must be provided for the condenser.
• Cellar Access: Frequent door openings can increase the cooling load.

Recommended Accessory

Breezaire Bottle Probe: The optional Bottle Probe measures the temperature of the wine bottle rather than the surrounding air temperature, providing an additional method of monitoring actual wine temperature.

WKSL Series Comparison

Cooling System Specifications
